Build custom dashboards

Dashboards give you a space to visually compare your testing data, so you can view and share easily digestible information. You can customize your panel groups and names, as well as organize them into tabs. This is great for reporting high-level data at regular intervals.

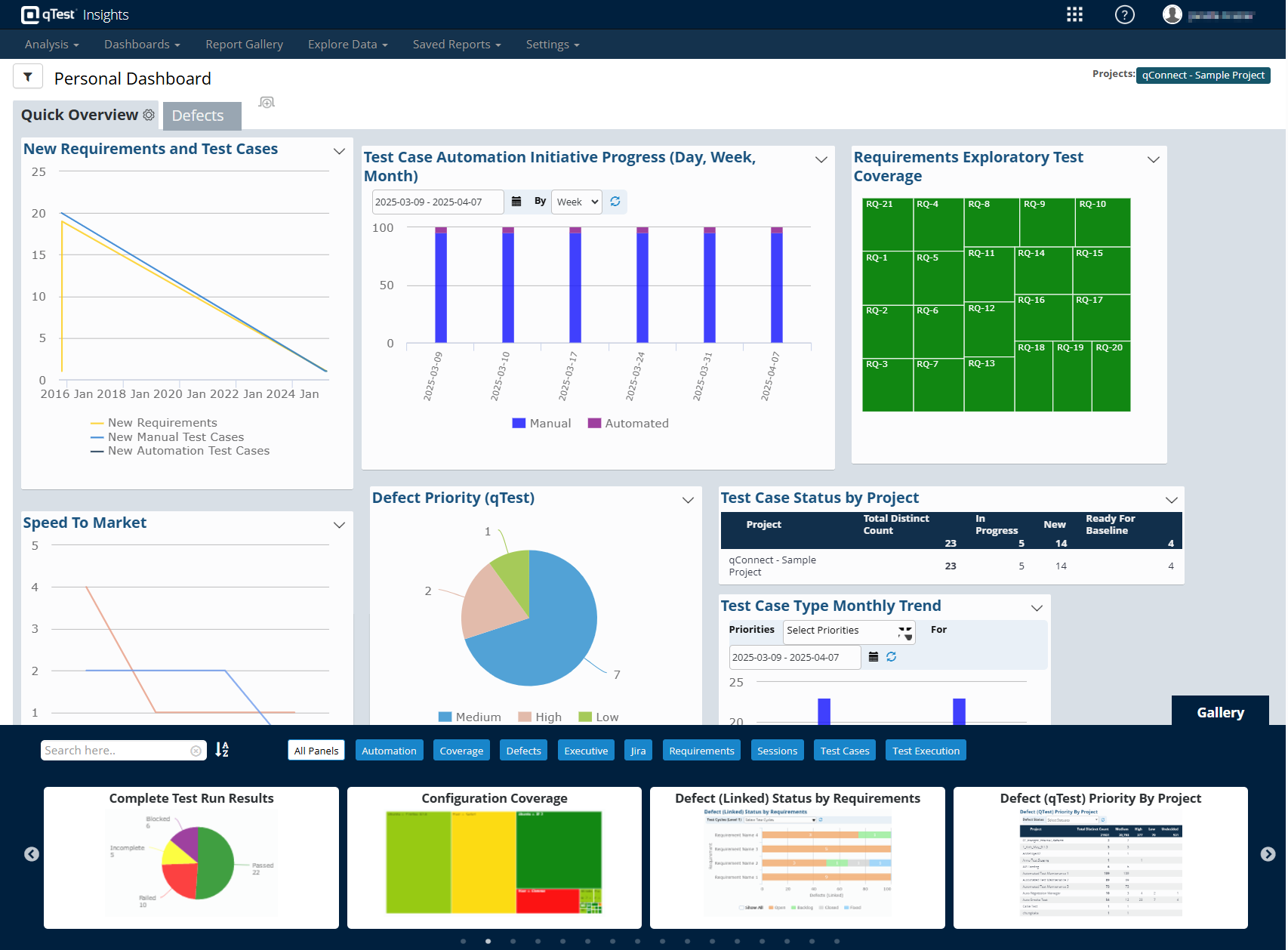

Use preset panels to create custom dashboards.

Before you start

Make sure you have the Insights Editor permissions to create, edit, and save dashboards.

Create a new dashboard

In addition to the analysis dashboards, you can create as many custom dashboards as you need.

To create a dashboard, follow these steps:

  1. Go to the Dashboards tab and select  Create Dashboard from the dropdown menu.

  2. To give the new dashboard a unique name, select the Gear icon and then Rename from the dropdown menu. Enter your desired name in the text-field and select Save.

  3. Drag the panels you want to add from the Gallery at the bottom of the dashboard to wherever you want them to display.

  4. Optionally, select the New tab button to add tabs that organize your dashboard.

Insights automatically saves any changes you make to your dashboards. Note that other users with Insights Editor permission will be able to access and edit your newly created dashboard.

Panels

qTest Insights offers a variety of panels that you can use to view datasets from many different areas in your testing process. Depending on your needs, drag and drop these panels from the Gallery to create unique dashboard views.

Check out the following topics to learn more:

Filter a dashboard

Dashboards provide a powerful view across different parts of your testing process. Users with Insights Editor permissions can apply and save filters to create more specific dashboards. For example, you can create multiple versions of the same dashboard to cover different projects.

To create a filter, follow these steps:

  1. Select the  Global Filter icon to open the Filters panel.

  2. Narrow down your dashboard using the following values: Projects, Test Cycles, Modules, Release, and release Status. Any changes to your criteria affect the full dashboard view.

  1. Set the filter to automatically refresh at intervals of 1, 2, 5, 10, or 20 minutes. You can also select Refresh Now at any point to reload your dashboard with the latest data.

  1. Select Save as and give your filtered dashboard a name.

If you edit a the original version of a dashboard that's been saved with filters, such as by adding or removing panels, the changes also apply to the filtered versions of the dashboard.

Your browser keeps track of your Global Filter settings with cookies. To make sure these cookies don't affect other dashboard views, be sure to remove the global filters before you navigate away from a dashboard saved with filters.

To access your filtered dashboards, navigate to Manage in the Dashboards dropdown, and go to the Saved with Filters section.

What's next

Want to share a saved dashboard? Take a look at how to share dashboards.
