Object type matrix
The following matrix indicates the object types supported by various LiveCompare operations.

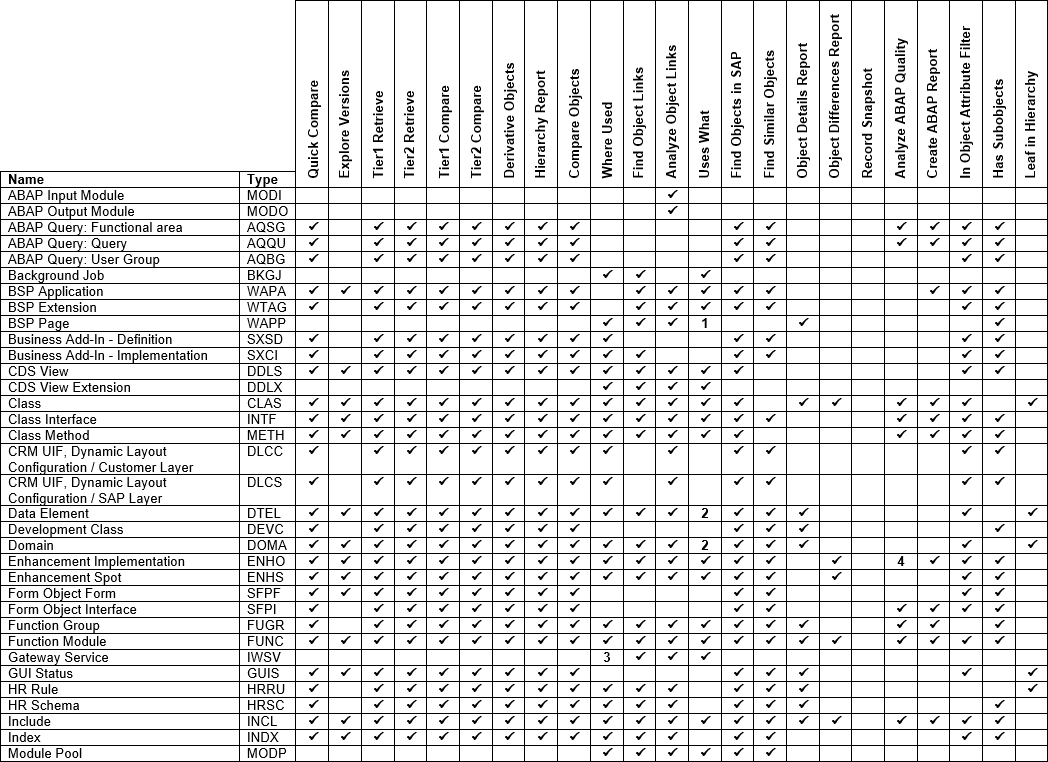

Standard objects A - M

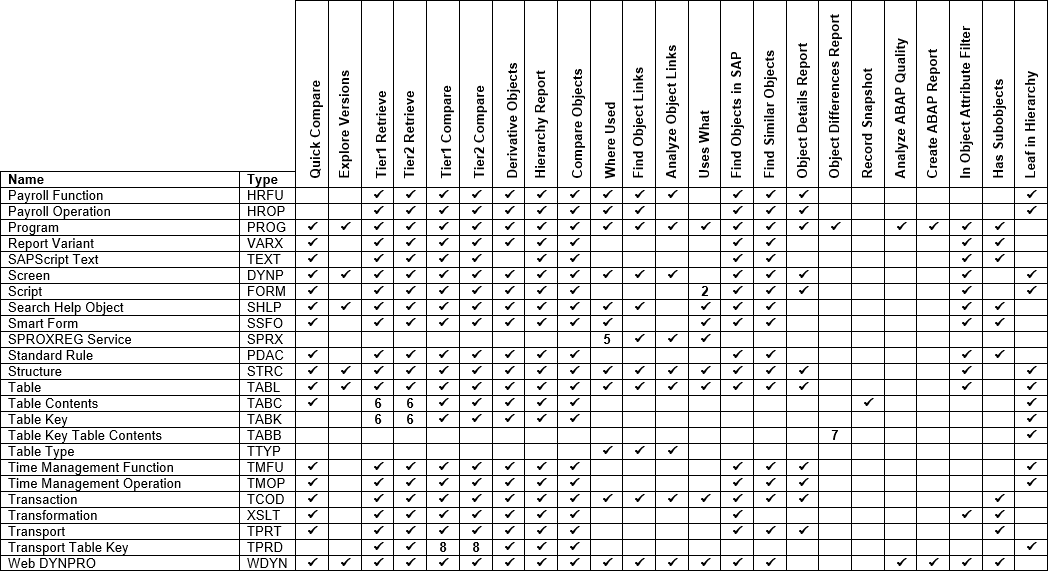

Standard objects N - Z
-
Find Object Links (Read Only) actions support the same object types as Find Object Links actions.
-
Uses What (Read Only) actions support the same object types as Uses What actions.
-
Where Used (Read Only) actions support the same object types as Where Used actions.
Key (standard objects)
1
Returns the BSP Page’s used components and its associated Class (CLAS), as well as top-level Class objects for the BSP Application (WAPA).
2
These objects may appear in Uses What results.
3
Appears in Where Used results for Classes (CLAS).
4
Support of ENHO objects by the Analyze ABAP Quality action is limited to ENHO objects that contain ‘code insertions’, and doesn't include EBHO BADI implementations.
5
Returns no results as SPROXREG Services (SPRX) are top-level objects.
6
Compares the changed keys only for Table Contents in a transport.
7
Appears in Object Differences reports for Table Keys (TABK).
8
Compares the changed keys only for Table Contents in a transport.

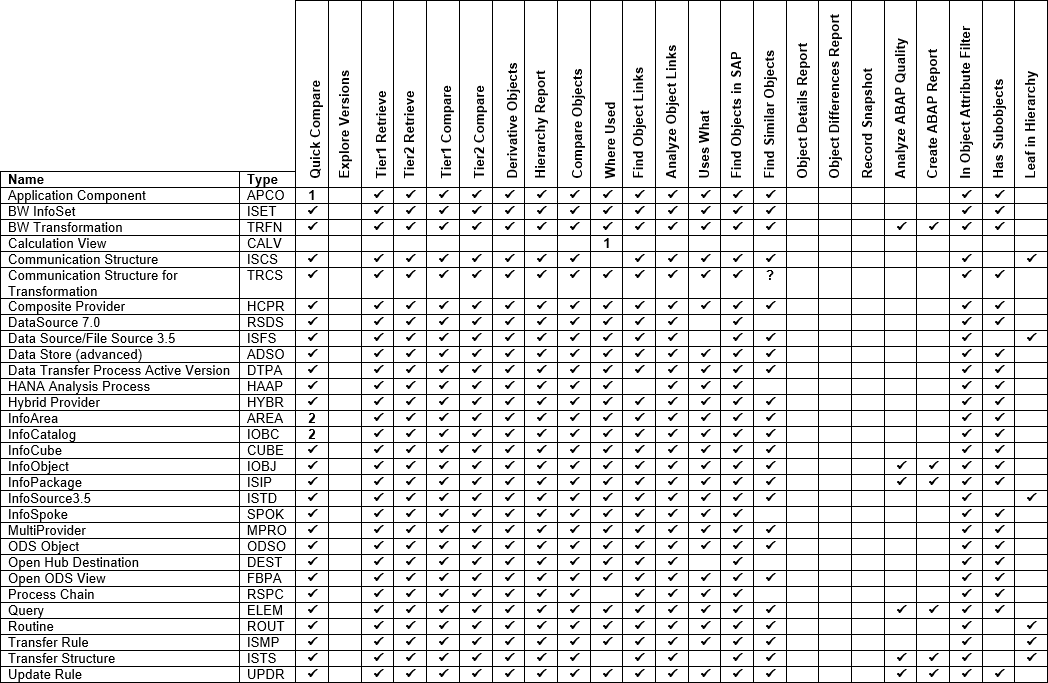

BW objects
- Find Object Links (Read Only) actions support the same object types as Find Object Links actions.
-
Uses What (Read Only) actions support the same object types as Uses What actions.
-
Where Used (Read Only) actions support the same object types as Where Used actions.
Key (BW objects)
1
Appears in Where Used results if the Where Used action’s Use Cache property is set to true. Calculation Views (CALV) are retrieved from an RFC Destination’s associated HANA database. Before running the Create Object Links Cache or Where Used actions to retrieve Calculation Views, the following fields should be set by an Administrator in the Configuration - Impact Analysis screen.
| Field | Description |
|---|---|
| BWHANABaseSchemaNames | Used by LiveCompare to identify the BW HANA database BaseSchema that contain calculation views. Enter values separated by ‘;’, for example, _SYS_BIC;DUMMY_NAME. |
| BWHANABaseObjectNameNamespaces | Used by LiveCompare to identify the prefixes used in the names of calculation views. Enter values separated by ‘;’, for example, MELPE;DUMMY_VALUE. |
2
Doesn't support the display or comparison of subobjects.
Actions and properties
The following table indicates the actions and properties that were tested for each operation.
| Operation | Action | Properties |
|---|---|---|
| Quick Compare | - | - |
| Explore Versions | - | - |
| Tier1 Retrieve | Get SAP Objects, Make Hierarchy | Objects, Selects |
| Tier2 Retrieve | Get SAP Objects, Make Hierarchy | Objects, Selects |
| Tier1 Compare | Get SAP Objects, Compare Objects, Make Hierarchy | Objects, Selects, Types to Compare |
| Tier2 Compare | Get SAP Objects, Compare Objects, Make Hierarchy | Objects, Selects, Types to Compare |
| Derivative Objects | Get SAP Objects, Compare Objects, Make Hierarchy | Objects, Derivative Object Map, Types to Compare |
| Hierarchy Report | Create Hierarchy Report | Source, Types for Details |
| Compare Objects | Compare Objects | Source |
| Where Used | Where Used | Source, Types to Report |
| Find Object Links | Find Object Links | Objects to Find, Patterns, Source, Types to Report |
| Analyze Object Links | Analyze Object Links | Objects to Ignore, Source, Types to Find, UPL Data |
| Uses What | Uses What | Patterns, Source, Types to Report |
| Find Objects in SAP | Find Objects in SAP | Patterns, Types |
| Find Similar Objects | Find Similar Objects | Source, Types to Find |
| Object Details Report | Create Object Details Report | Source |
| Object Differences Report | Create Object Differences Report | Objects |
| Record Snapshot | Record Snapshot | Source, Types to Compare |
| Analyze ABAP Quality | Analyze ABAP Quality | Source |
| Create ABAP Report | Create ABAP Report | Source |
| In Object Attribute Filter | - | - |
| Has Subobjects | - | - |
| Leaf in Hierarchy | - | - |
The object types for which ‘Explore Versions’ is supported in the Quick Compare Wizard also return version details in the Get Transport Object Versions action’s results.
