Resource expressions

A Resource expression is a reference to a resource, i.e. a data structure or an open transmission channel.

To use Resources in your tests, follow the steps below:

  1. Load your Resource. You can do so via a Module, for instance with the Open/Create XML file Module, or with a Special Execution Task.

  2. In the TestStep you create from the Module, assign a plain-text name to your Resource.

  3. Reference this name in other TestSteps with the following syntax:

{RES[MyResource]}

You cannot combine Resource expressions with other expressions.

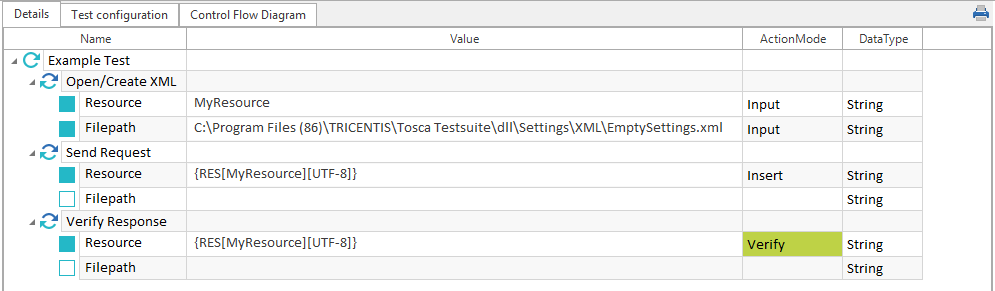

In the example below, you use a Resource in an API TestCase.

  • The TestStep Open/Create XML was created with the Open/Create XML file Module and loads the file EmtpySettings.xml as a resource with the name MyResource.

    In other words, you use this TestStep to assign a name to your Resource and to specify which data structure this name refers to.

  • TestStep Send Request sends the Resource to the webservice as a UTF-8-encoded string.

  • TestStep Verify Response verifies the value in the response message from the webservice.

Resource expressions in an API TestCase

Encode Resources

You can convert the content of a Resource to a different format.

To do so, specify one of the following types of encoding:

  • ASCII

  • UTF7

  • UTF8

  • Unicode

  • UTF32

{RES[MyResource][encoding]}

Delete Resources

You can delete Resources, for instance if you only use a specific Resource for a specific TestCase. For information on how to do so, check out "Resource Handling".
