Object Header Filter parameters

Object Header Filter parameters are used by the Get SAP Objects action to filter retrieved SAP objects based upon their header values. When the Get SAP Objects action is run, only those objects whose header values match the filter are retrieved.

To set the value of an Object Header Filter parameter, open the Property Editor and click the field to the right of the parameter's Object Header Filter property. The Object Header Filter Editor dialog is displayed in the lower portion of the Workflow Editor, showing the name of the parameter being edited. Note that the workflow diagram may not be edited while this dialog is displayed.

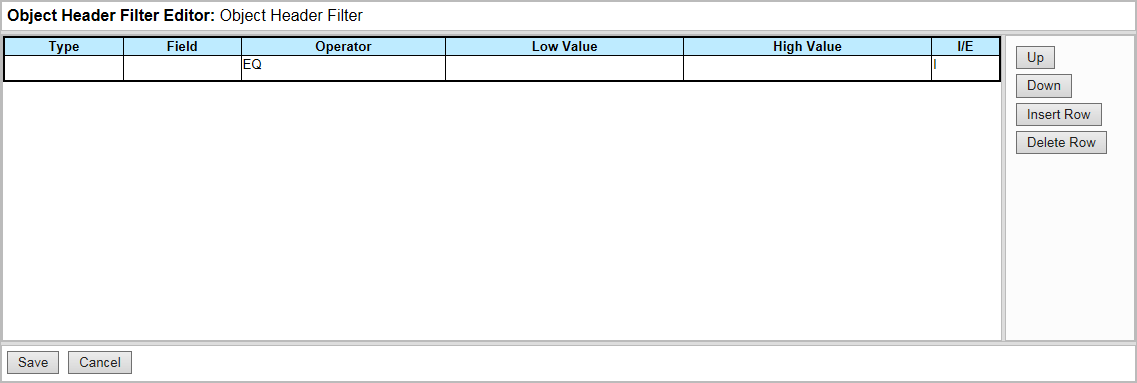

Object Header Filter Editor dialog.

Complete the cells in the Object Header Filter Editor table as follows.

  1. Select an object type to filter from the Type cell. The following object types are supported.
PROG Program
FUNC Function
STRC Structure
TABL Table
DYNP Screen

GUIS Toolbar and Menu
INCL Include
FORM Script
DTEL Data Element
DOMA Domain
  1. In the Field cell, select an attribute to filter for the specified type. The attributes that are available depend upon the object type chosen in Step 1.
  2. Select a comparison operator in the Operator cell. The following operators are available:

BT between
CP contains pattern
EQ equal to
GE greater than or equal to

GT greater than
LE less than or equal to
LT less than
NE not equal to
  1. Enter a comparison value in the Low Value cell.
  • If the BT operator is used, the Low Value field should refer to the low comparison value.
  • If the CP operator is used, the Low Value field must contain at least one wildcard character. * matches against any number of characters, and + matches against a single character.
  1. If the BT operator is used, enter the high comparison value in the High Value cell.
  2. Select I in the I/E cell to include any matching objects in the retrieved results, or E to exclude them. If the ‘Exclude’ option is used, you must create an ‘Include’ specification for the same object type.

Click:

  • Up to move the selected row up in the object header filter.
  • Down to move the selected row down in the object header filter.
  • Insert Row to add a new entry underneath the selected row.
  • Delete Row to delete the selected row.

When editing the object header filter, use the Tab key to move to the next table cell, or Shift+Tab to move to the previous table cell. The Up and Down Arrow keys may be used to move between rows. Moving the cursor beyond the bottom row in the table adds a new row. This may be done using the Tab key, or the Down Arrow key for cells without dropdown selections.

To modify an element in an object header filter, select the appropriate table cells and update their values directly.

Click Save to confirm any changes to the Object Header Filter parameter.

  • Selection criteria that refer to the same object type are logically ORed together.
  • Selection criteria that refer to different object types are logically ANDed together.
  • Excluded criteria are logically ANDed with other criteria.

The number of items in an Object Header Filter parameter is displayed above the parameter node. To examine the details of an Object Header Filter parameter after a workflow has been saved, double-click the node or select View Details from the node’s context menu.
