TableTree

TableTrees have TreeNodes, as Trees do, but can also have a number of columns which show data relating to each TreeNode. TableTrees can be automated using single-line syntax or a hierarchical structure in Tosca TBox.

Single-line view

Tosca automatically creates TableTrees when you scan them with Tosca XScan.

You can steer TableTrees by using the arrow -> as a separator to specify the path to the relevant TreeNode.

In this example, the engine selects the entry Item 3 from the TableTree.

The TableTree structure looks as follows:

  • Item 1

    • Item 2

      • Item 3



Selecting a TableTree entry by specifying the path

Structured view

The TableTree control consists of TreeNodes and cells. By default each TreeNode contains a TreeNode and a cell as children.

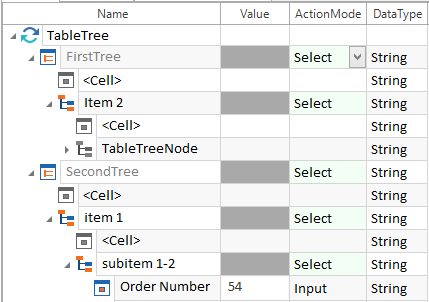

Structure of a TableTree

Steering TreeNodes in TableTrees

The following property can be verified for TreeNodes in addition to the general properties:

Property

Description

Selected

This specifies whether an entry is selected or deselected.

If you want to steer a structured TableTree the ActionMode Select must be specified for the TableTree. To steer a given TreeNode the ActionMode Select must specified for all entries above that TreeNode in the hierarchy.

The table below lists all ActionModes that are available for TreeNodes. If the property is not specified in the TestStepValue, the system will use the property listed in the Default property column.

ActionMode

Value

Default property

Description

Input

x, X
<Mouse action>

Selected

This selects an entry.

A mouse action is performed on the entry.

Verify

True,
False,
<Property>

Selected

This verifies either the value or the property.

Buffer

<Buffer name>

Selected

This saves the value True if the entry is selected, otherwise False is saved.

Select

none

Selected

This selects an entry.

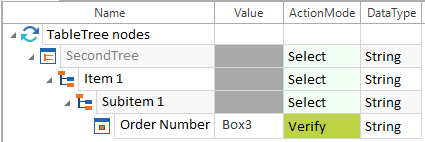

In this example the engine verifies the value in the column Order Number for the TreeNode Subitem 1 in the TableTree.



Verifying a value in a cell in a TableTree

Steering Cells in TableTrees

The following options are available for identifying and populating cells:





Description

<Cell>

  • Column name: the available names are defined via the header.

  • $1: this steers the first cell of the table

  • $<n>: row or column number using a dollar sign as a prefix

    The value <n> must be replaced by a row or column number.

  • Cell values can also be specified in the Value column.

  • $last: this steers the last cell of the row or column

Controls can be embedded in the cell of a TableTree. For further information, refer to chapter "Defining controls in cells".

Selecting entries by using relative paths

If you want to set the path to an entry you can use relative paths in the structured view.

Change the value of the configuration param BusinessAssociation to Descendants in the Properties tab of the ModuleAttribute.

The entry Item1-2 is selected as shown below, without selecting the entries that are located hierarchically above.

TableTree structure

In the TestCase, set the ActionMode to Select for the TableTree FirstTree. The ActionMode Select selects the TreeNode Item1-2 from the TableTree.

Selecting TreeNodes in a TableTree

Selecting entries via indexes and names

If multiple entries of the same name exist in structured view, you can use an index to define a specific entry.

  1. Define the configuration param ExplicitName for the entry in the ModuleAttribute and set the value to True (see chapter "Configuration Param").

  2. In the TestCase use the syntax #<n> in the Name column to specify the exact entry to be used with several search results.

The second blue entry is selected via the index:

TableTree structure

In the TestCase, set the ActionMode to Select for the TableTree SecondTree.

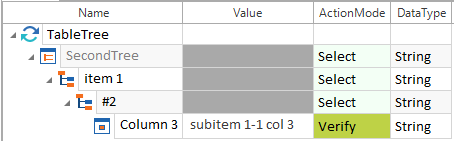

The TableTree SecondTree and the entries item 1 and subitem 1-1 receive the ActionMode Select. The value subitem 1-1 col 3 in Column 3 will be verified.

Using the index
