Configure Solace

Use the service port type Solace to connect to a Solace queue and to push and pull messages.

Configure your service port

Once you have created your service port, you can configure the general service port details:

Attribute

Description

General - Name

Enter the name of the service port.

General - Type

Select your service port technology.

Read / Write / Read & Write

Select what your service port should do with messages:

  • Read messages.

  • Write messages.

  • Read & Write messages.

Real Service

Select if you want to connect to a real service.

Forwarding

Allow OSV to forward requests to the real service. To use this option, you need to select Real Service.

Learning

Allow OSV to store forwarded messages in the Recorder tab. To use this option, you need to enable Forwarding.

Active

Select if you want your service port to be active, deselect to set it to inactive.

To connect to Solace, specify the following attributes:

Attribute

Description

Type

Select Queue or Topic.

Your choice depends on how you push and pull your messages with Solace. Queues represent a one-to-one messaging pattern, while topics allow one-to-many messaging.

Name

Enter the name of the queue or topic you want to connect to.

Host

Enter the name or IP address of the host.

Username

If your connection requires authentication, enter your user name.

Password

If your connection requires authentication, enter your password.

MessageType

Specify what type of message you want to send and receive: JmsTextMessage or JmsBytesMessage.

Selector

Define a selector to filter the headers and properties of incoming JMS messages.

This allows you to receive only JMS messages that match your filter criteria.

For detailed information on supported Solace selectors, see the Solace documentation (opens in new tab).

Port

Specify the port to address Solace.

VpnName

Specify the name of the message VPN you want to join.

Unprocessable Messages

Determine how to handle messages in a queue that a client can no longer process:

  • Delete the message.

  • Keep the message for processing by another client.

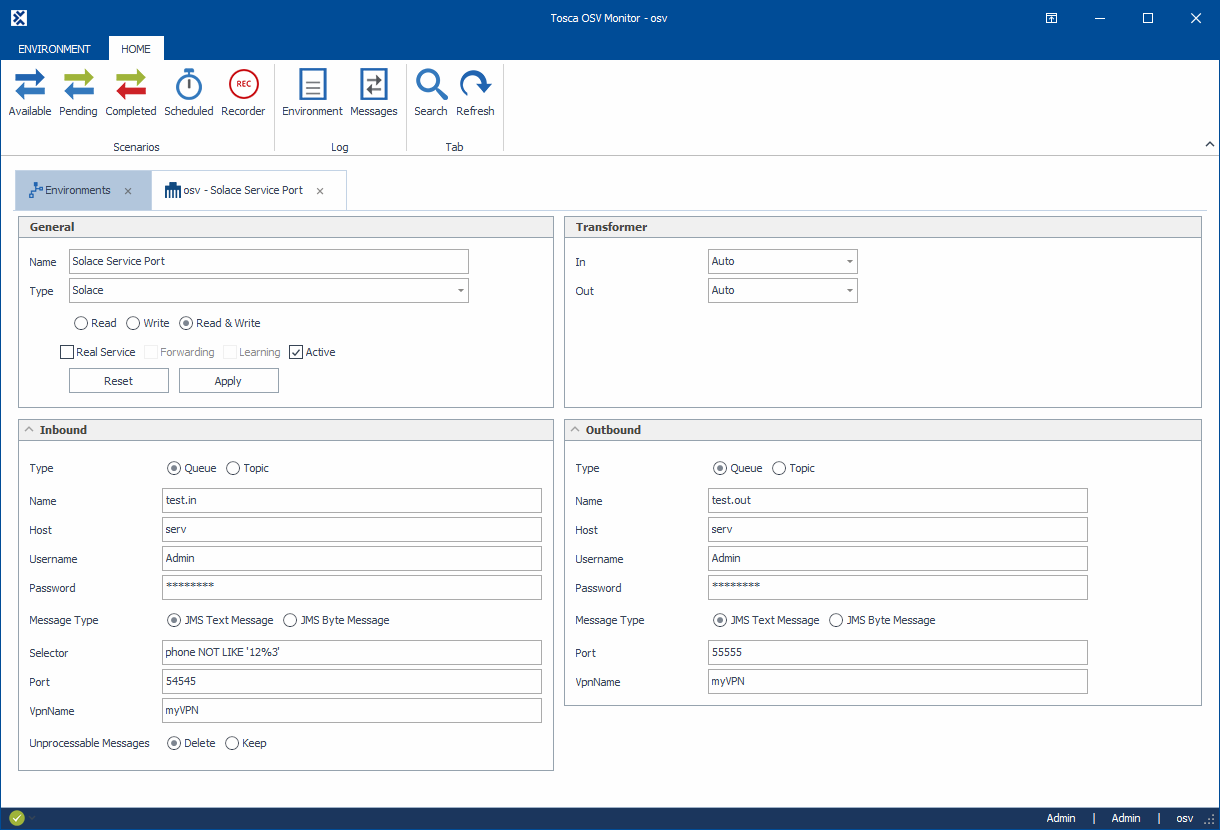

Solace service port

To save your changes, select Apply. To discard your changes, select Reset.

Once you have configured your service port, you can use your Solace connection for testing. For information on how to edit JMS messages for your OSV Scenarios, check out "Edit JMS messages".
