PDF Modules

The folder TBox XEngines->Pdf in the Standard subset contains a Module that performs specific tasks for the PDF Engine 3.0.

1:1 Compare

The Module 1:1 Compare allows you to compare two PDF files.

The PDF Engine 3.0 performs a visual comparison between the two files.

If the similarity between the two files is above a certain percentage, the TestCase passes.
If the similarity between the two files is below the expected value, the TestCase fails.

The Module has the following ModuleAttributes:

ModuleAttribute	Description
Reference PDF	Full path to the first PDF file, including the file name and extension.
Reference PDF Password	Password to open the first PDF file.
Target PDF	Full path to the second PDF file, including the file name and extension.
Target PDF Password	Password to open the second PDF file.
Accuracy [%]	Specify the minimum similarity in percent between the two files.
Text-only Comparison	Optionally, specify whether Tricentis Tosca should only compare text and ignore all graphical elements in the files. If you're dealing with large PDF files, this may improve performance. Additionally, you can tell Tosca to ignore whitespaces. To do so, use the setting Ignore whitespace in text-only comparison.
Excluded Pages	Optionally, specify the pages that you want to exclude from the comparison. To specify a page range, use a hyphen (-). To specify multiple pages or page ranges, use a semicolon (;).
Areas to Exclude	Optionally, specify areas in your PDF files that you want to exclude from the comparison. The following ModuleAttributes apply for each excluded area: Area to Exclude > Dimensions contains the dimension coordinates respective to the excluded area. For information on how to get these dimensions, see "Exclude areas from the comparison". Area to Exclude > Page(s) specifies in which pages of the document the excluded area is. To specify a page range, use a hyphen (-). To specify multiple pages or page ranges, use a semicolon (;).
Text to Exclude	Optionally, specify patterns of text that you wish to exclude from the comparison. You can use regular expressions to specify unique patterns, if needed. We recommend you use Regular Expressions 101 to verify your regular expressions. The following ModuleAttributes apply for each excluded pattern: Pattern to Exclude > Pattern contains the text pattern you want to exclude. If you use special characters in this pattern but intend to use them as ordinary characters, you have to escape them. For more information and examples, see "Exclude text patterns from the comparison". Pattern to Exclude > Use Regex specifies whether the Pattern to exclude contains regular expressions.

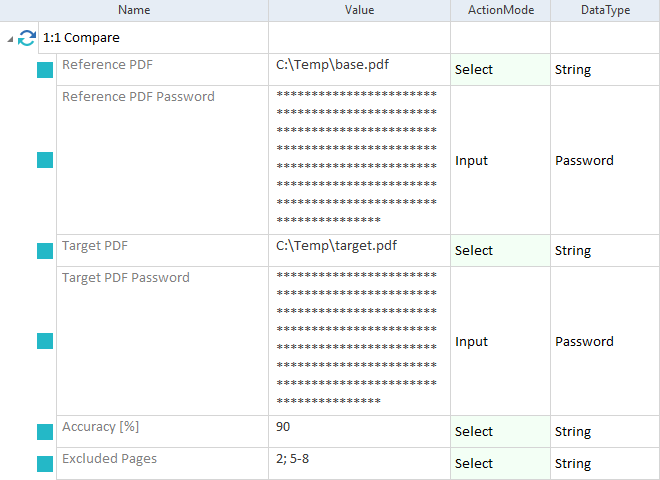

In this example, you compare the file base.pdf to the file target.pdf.

You specify the password for each file.

You expect that the files should be at least 90 percent similar.

You exclude page 2 and pages 5 to 8 from the comparison.

Compare two PDF files

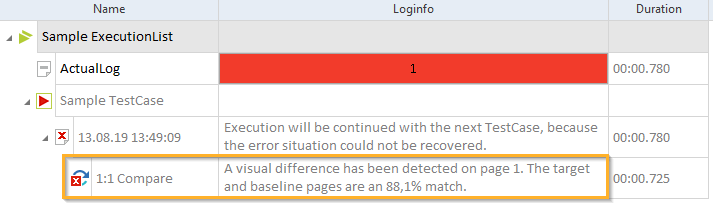

The comparison result shows that the files don't have the minimum similarity that you have specified.

Consequently, your TestCase fails.

Failed PDF comparison
