DotNet Modules

The folder TBox XEngines->DotNet in the Standard subset contains a Module that performs specific tasks for the DotNet Engine 3.0.

WinForms Context Menu

The Module WinForms Context Menu allows you to steer WinForms context menus.

To use the Module WinForms Context Menu, you must manually open the context menu that you want to steer so Tricentis Tosca can detect it.

It has the following ModuleAttributes:

ModuleAttribute	Description
ContextMenu	Path to the menu item. Specify the context menu path with ->, for instance Insert->Image.
ContextMenu-><MenuItem>	Alternatively, you can use this ModuleAttribute to steer a context menu with control hierarchy instead (see example below).

ModuleAttribute

Description

ContextMenu

Path to the menu item.

Specify the context menu path with ->, for instance Insert->Image.

ContextMenu-><MenuItem>

Alternatively, you can use this ModuleAttribute to steer a context menu with control hierarchy instead (see example below).

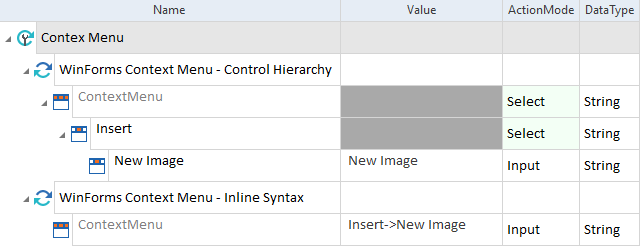

In this example, you select the entry Insert->New Image of a context menu which is currently open.

It does so in two different ways:

In TestStep WinForms Context Menu - Control Hierarchy, you steer the context menu via control hierarchy to select the entry New Image.
In TestStep WinForms Context Menu - Inline Syntax, you steer the context menu via inline syntax to select the entry New Image.

Different ways to steer a WinForms context menu
