Steer Oracle EBS Controls

Oracle Modules are created by using either Tosca XScan or the Tricentis Automation Recording Assistant (Tricentis ARA).

You can automate the following standard controls as described in chapter "Steering Controls":

• Button

• CheckBox

• ComboBox

• Label

• Menu

• RadioButton

• Table

• TextBox

• TreeView

• Window

The chapter below describes how to steer Oracle EBS-specific controls. Note: if the controls are in the scroll pane, the Java Engine 3.0 can also steer controls that are out of the visible area of your application under test. At run-time, Tosca automatically jumps to the appropriate control.

The Java Engine 3.0 can't steer Oracle Forms applications that aren't part of the Oracle EBS suite.

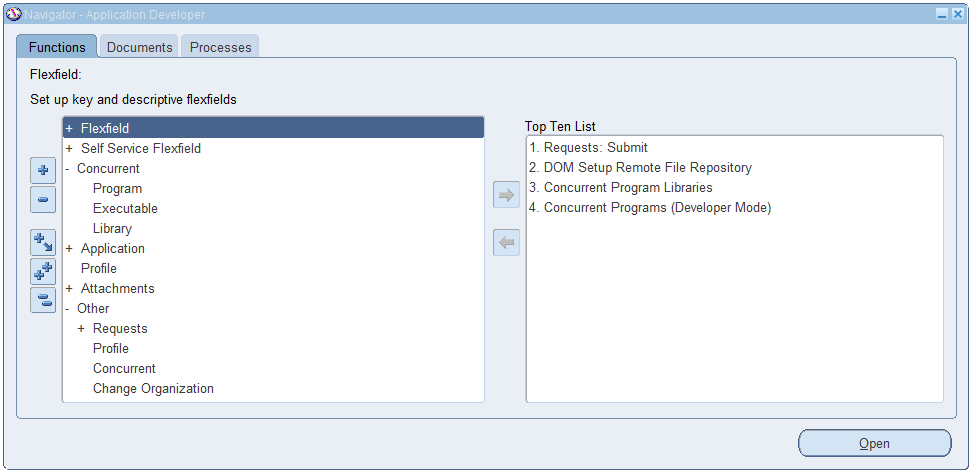

Oracle List

Tosca identifies Oracle Lists by their content, either as Trees or as Lists.

For information on how to steer Trees, see chapter "TreeView".

For information on how to steer Lists, see chapter "Listbox".

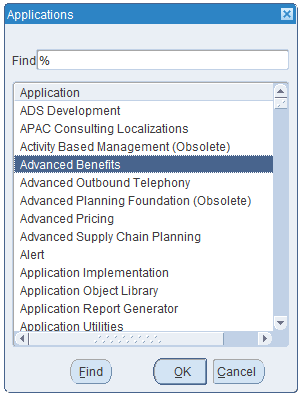

Oracle ListView

You can steer ListViews as described in chapter "Table".

Oracle StatusBar

You can steer the labels inside an Oracle StatusBar as described in chapter "Label".

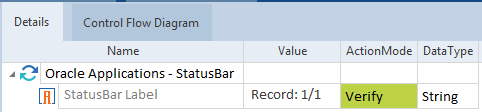

This example verifies whether the StatusBar shows Record:1/1. Steer Oracle StatusBar

Oracle TabBar

You can steer Oracle TabBars as described in chapter "TabControl".

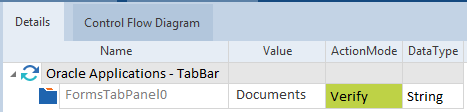

This example verifies whether the Oracle TabBarDocuments is selected. Steer Oracle TabBar

Oracle ToolBar

You can steer Oracle ToolBars as described in chapter "Menu".

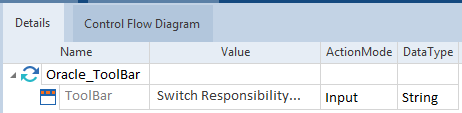

This example selects Switch Responsitbility... from the Oracle ToolBar. Steer Oracle ToolBar
