Using Magic Variables in Universal Agent
In Universal Agent there are Magic Variables, which contains contextual values of the current execution that you can programmatically access via Execute Command.
Notes
-
Universal Agent only assigns contextual values to these variables at run time if the selected Executor is either node, python or python3.
-
Automation Host package includes node, but not python. If you want to use python, you will need to install it yourself and make it available to the Automation Host.
$PROJECT_DATA <string>
This variable contain values of the current executing project under JSON format.
Example:
Copy
{
"project_id":12345,
"properties": {
"job_id":12345,
"user_schedule": {
"id":12345,
"name":"John Doe"
}
}
}$TESTRUNS_LIST <string>
This variable contains a list of test runs that was scheduled to be executed by Universal Agent. The values are under JSON format.
Example:
Copy
[
{
"parentId": 4952359,
"parentType": "test-suite",
"automation": "Yes",
"links": [
{
"rel": "test-case",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-cases/40577398?versionId=58832885&showParamIdentifier=false"
},
{
"rel": "test-suite",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-suites/4952359"
},
{
"rel": "self",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-runs/158579162"
}
],
"id": 158579162,
"name": "cy.go() - go back or forward in the browser's history#Navigation cy.go() - go back or forward in the browser's history",
"order": 87,
"pid": "TR-2217",
"created_date": "2020-05-01T23:47:54+07:00",
"last_modified_date": "2020-05-01T23:47:54+07:00",
"properties": [
{
"field_id": 6964386,
"field_name": "Run Order",
"field_value": "87"
},
{
"field_id": 6964392,
"field_name": "Planned Time",
"field_value": "0"
},
{
"field_id": -117,
"field_name": "Total Planned Time",
"field_value": "0"
},
{
"field_id": 6964393,
"field_name": "Actual Time",
"field_value": "0"
},
{
"field_id": -112,
"field_name": "Total Actual Time",
"field_value": "0"
},
{
"field_id": -106,
"field_name": "Average Execution Time",
"field_value": "0"
},
{
"field_id": 6902134,
"field_name": "Execution Type",
"field_value": "501",
"field_value_name": "Functional"
},
{
"field_id": 6902135,
"field_name": "Planned Start Date",
"field_value": "2019-04-23T00:00:00+00:00"
},
{
"field_id": 6902136,
"field_name": "Environment",
"field_value": "",
"field_value_name": ""
},
{
"field_id": 6902137,
"field_name": "Planned End Date",
"field_value": "2019-04-23T00:00:00+00:00"
},
{
"field_id": 6902139,
"field_name": "Target Release/Build",
"field_value": "",
"field_value_name": ""
},
{
"field_id": 6902129,
"field_name": "Assigned To",
"field_value": "8931",
"field_value_name": "Huy Nguyen"
},
{
"field_id": 6902143,
"field_name": "Status",
"field_value": "601",
"field_value_name": "Passed"
},
{
"field_id": 6902141,
"field_name": "Priority",
"field_value": "723",
"field_value_name": "Medium"
},
{
"field_id": 6964378,
"field_name": "Build Number",
"field_value": ""
},
{
"field_id": 6964380,
"field_name": "CI Tool",
"field_value": "",
"field_value_name": ""
},
{
"field_id": 6964379,
"field_name": "Build URL",
"field_value": ""
}
],
"test_case": {
"links": [
{
"rel": "attachments",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-cases/40577398/attachments"
},
{
"rel": "self",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-cases/40577398"
},
{
"rel": "test-steps",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-cases/40577398/versions/58832885/test-steps?expand=&showParamIdentifier=false"
},
{
"rel": "attachments",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-cases/40577398/attachments"
}
],
"id": 40577398,
"name": "cy.go() - go back or forward in the browser's history#Navigation cy.go() - go back or forward in the browser's history",
"order": 68,
"pid": "TC-616",
"created_date": "2020-04-29T01:16:56+07:00",
"last_modified_date": "2020-04-29T01:16:56+07:00",
"properties": [
{
"field_id": 6902118,
"field_name": "Automation",
"field_value": "711",
"field_value_name": "Yes"
},
{
"field_id": 6902119,
"field_name": "Automation Content",
"field_value": "cy.go() - go back or forward in the browser's history#Navigation cy.go() - go back or forward in the browser's history"
},
{
"field_id": 6902121,
"field_name": "Status",
"field_value": "201",
"field_value_name": "New"
},
{
"field_id": 6902122,
"field_name": "Type",
"field_value": "702",
"field_value_name": "Automation"
},
{
"field_id": 6902114,
"field_name": "Assigned To",
"field_value": "",
"field_value_name": ""
},
{
"field_id": 6902124,
"field_name": "Description",
"field_value": ""
},
{
"field_id": 6902125,
"field_name": "Precondition",
"field_value": ""
},
{
"field_id": 6902126,
"field_name": "Priority",
"field_value": "723",
"field_value_name": "Medium"
},
{
"field_id": 9525078,
"field_name": "Tuan Test",
"field_value": "tuan test"
},
{
"field_id": 9525079,
"field_name": "New Value",
"field_value": "",
"field_value_name": ""
}
],
"web_url": "https://qas.qtestnet.com/p/91096/portal/project#tab=testdesign&object=1&id=40577398",
"test_steps": [
{
"links": [
{
"rel": "self",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-cases/40577398/test-steps/420890968"
},
{
"rel": "attachments",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-steps/420890968/attachments"
}
],
"id": 420890968,
"description": "Navigation cy.go() - go back or forward in the browser's history",
"expected": "Navigation cy.go() - go back or forward in the browser's history",
"order": 1,
"attachments": [
],
"group": 1,
"information": {
"description": null,
"descriptionInfo": {
"parameters": [
],
"rawText": "Navigation cy.go() - go back or forward in the browser's history",
"plainValueText": "Navigation cy.go() - go back or forward in the browser's history",
"editedParameters": [
],
"valueText": "Navigation cy.go() - go back or forward in the browser's history",
"htmlText": "Navigation cy.go() - go back or forward in the browser's history",
"plainText": "Navigation cy.go() - go back or forward in the browser's history"
},
"expectedResult": null,
"actualResult": null
},
"plain_value_text": "Navigation cy.go() - go back or forward in the browser's history",
"parameter_values": [
]
}
],
"parent_id": 8346717,
"test_case_version_id": 58832885,
"version": "1.0",
"description": "",
"precondition": "",
"creator_id": 8931,
"agent_ids": [
]
},
"test_case_version_id": 58832885,
"test_case_version": "1.0",
"creator_id": 8931
},
{
"parentId": 4952359,
"parentType": "test-suite",
"automation": "Yes",
"links": [
{
"rel": "test-case",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-cases/40577414?versionId=58832901&showParamIdentifier=false"
},
{
"rel": "test-suite",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-suites/4952359"
},
{
"rel": "self",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-runs/158579171"
}
],
"id": 158579171,
"name": "cy.spy() - wrap a method in a spy#Spies, Stubs, and Clock cy.spy() - wrap a method in a spy",
"order": 96,
"pid": "TR-2226",
"created_date": "2020-05-01T23:47:54+07:00",
"last_modified_date": "2020-05-01T23:47:54+07:00",
"properties": [
{
"field_id": 6964386,
"field_name": "Run Order",
"field_value": "96"
},
{
"field_id": 6964392,
"field_name": "Planned Time",
"field_value": "0"
},
{
"field_id": -117,
"field_name": "Total Planned Time",
"field_value": "0"
},
{
"field_id": 6964393,
"field_name": "Actual Time",
"field_value": "0"
},
{
"field_id": -112,
"field_name": "Total Actual Time",
"field_value": "0"
},
{
"field_id": -106,
"field_name": "Average Execution Time",
"field_value": "0"
},
{
"field_id": 6902134,
"field_name": "Execution Type",
"field_value": "501",
"field_value_name": "Functional"
},
{
"field_id": 6902135,
"field_name": "Planned Start Date",
"field_value": "2019-04-23T00:00:00+00:00"
},
{
"field_id": 6902136,
"field_name": "Environment",
"field_value": "",
"field_value_name": ""
},
{
"field_id": 6902137,
"field_name": "Planned End Date",
"field_value": "2019-04-23T00:00:00+00:00"
},
{
"field_id": 6902139,
"field_name": "Target Release/Build",
"field_value": "",
"field_value_name": ""
},
{
"field_id": 6902129,
"field_name": "Assigned To",
"field_value": "8931",
"field_value_name": "Huy Nguyen"
},
{
"field_id": 6902143,
"field_name": "Status",
"field_value": "601",
"field_value_name": "Passed"
},
{
"field_id": 6902141,
"field_name": "Priority",
"field_value": "723",
"field_value_name": "Medium"
},
{
"field_id": 6964378,
"field_name": "Build Number",
"field_value": ""
},
{
"field_id": 6964380,
"field_name": "CI Tool",
"field_value": "",
"field_value_name": ""
},
{
"field_id": 6964379,
"field_name": "Build URL",
"field_value": ""
}
],
"test_case": {
"links": [
{
"rel": "attachments",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-cases/40577414/attachments"
},
{
"rel": "self",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-cases/40577414"
},
{
"rel": "test-steps",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-cases/40577414/versions/58832901/test-steps?expand=&showParamIdentifier=false"
},
{
"rel": "attachments",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-cases/40577414/attachments"
}
],
"id": 40577414,
"name": "cy.spy() - wrap a method in a spy#Spies, Stubs, and Clock cy.spy() - wrap a method in a spy",
"order": 84,
"pid": "TC-632",
"created_date": "2020-04-29T01:16:56+07:00",
"last_modified_date": "2020-04-29T01:16:56+07:00",
"properties": [
{
"field_id": 6902118,
"field_name": "Automation",
"field_value": "711",
"field_value_name": "Yes"
},
{
"field_id": 6902119,
"field_name": "Automation Content",
"field_value": "cy.spy() - wrap a method in a spy#Spies, Stubs, and Clock cy.spy() - wrap a method in a spy"
},
{
"field_id": 6902121,
"field_name": "Status",
"field_value": "201",
"field_value_name": "New"
},
{
"field_id": 6902122,
"field_name": "Type",
"field_value": "702",
"field_value_name": "Automation"
},
{
"field_id": 6902114,
"field_name": "Assigned To",
"field_value": "",
"field_value_name": ""
},
{
"field_id": 6902124,
"field_name": "Description",
"field_value": ""
},
{
"field_id": 6902125,
"field_name": "Precondition",
"field_value": ""
},
{
"field_id": 6902126,
"field_name": "Priority",
"field_value": "723",
"field_value_name": "Medium"
},
{
"field_id": 9525078,
"field_name": "Tuan Test",
"field_value": "tuan test"
},
{
"field_id": 9525079,
"field_name": "New Value",
"field_value": "",
"field_value_name": ""
}
],
"web_url": "https://qas.qtestnet.com/p/91096/portal/project#tab=testdesign&object=1&id=40577414",
"test_steps": [
{
"links": [
{
"rel": "self",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-cases/40577414/test-steps/420890984"
},
{
"rel": "attachments",
"href": "https://qas.qtestnet.com/api/v3/projects/91096/test-steps/420890984/attachments"
}
],
"id": 420890984,
"description": "Spies, Stubs, and Clock cy.spy() - wrap a method in a spy",
"expected": "Spies, Stubs, and Clock cy.spy() - wrap a method in a spy",
"order": 1,
"attachments": [
],
"group": 1,
"information": {
"description": null,
"descriptionInfo": {
"parameters": [
],
"rawText": "Spies, Stubs, and Clock cy.spy() - wrap a method in a spy",
"plainValueText": "Spies, Stubs, and Clock cy.spy() - wrap a method in a spy",
"editedParameters": [
],
"valueText": "Spies, Stubs, and Clock cy.spy() - wrap a method in a spy",
"htmlText": "Spies, Stubs, and Clock cy.spy() - wrap a method in a spy",
"plainText": "Spies, Stubs, and Clock cy.spy() - wrap a method in a spy"
},
"expectedResult": null,
"actualResult": null
},
"plain_value_text": "Spies, Stubs, and Clock cy.spy() - wrap a method in a spy",
"parameter_values": [
]
}
],
"parent_id": 8346717,
"test_case_version_id": 58832901,
"version": "1.0",
"description": "",
"precondition": "",
"creator_id": 8931,
"agent_ids": [
]
},
"test_case_version_id": 58832901,
"test_case_version": "1.0",
"creator_id": 8931
}
]$TESTCASES_AC <string>
This variable contains automation content, separated by a comma, of all the test cases that are scheduled to be executed by Universal Agent Value of this variable is extracted from the $TESTRUNS_LIST variable and available for convenient use.
-
Automation content is used to identify automated test cases. So make sure this value is unique when assigning it to an automated test case.
Example:
Copy
sample.junit.CalculatorTest#testAddition,sample.junit.CalculatorTest#testSubtractionUsing Magic Variables
You can write code to access a magic variable in the Execute Command section of Universal Agent.
The selected executor must be either node, python or python3.

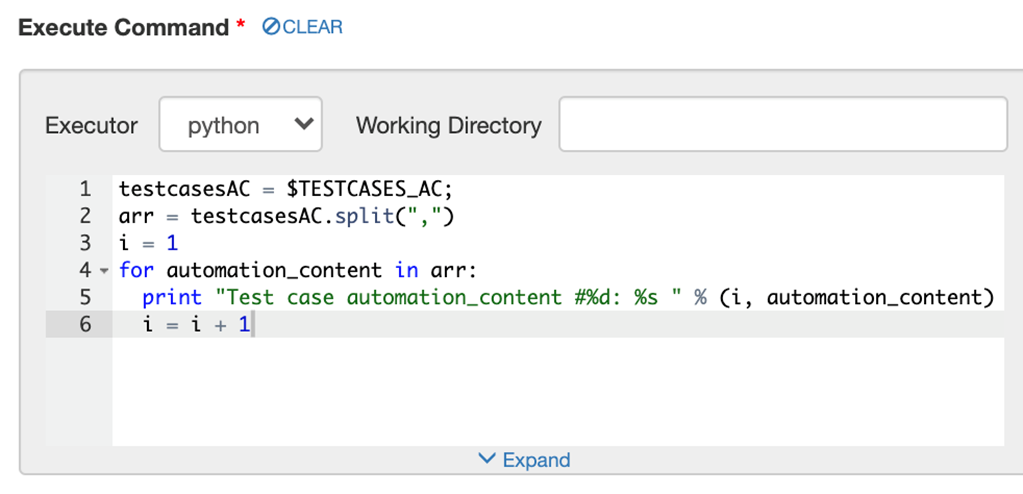

Below are some examples of accessing magic variables at runtime, when the Universal Agent kicks off its execution.
Example 1: extract automation content of the scheduled test cases from $TESTCASES_AC variable
-
Open the Universal Agent execution page.
-
Go to the Execute Command section.
-
Select Executor as python.
-
Enter the code below in the Execute Command editor:
CopytestcasesAC = $TESTCASES_AC;
arr = testcasesAC.split(",")
i = 1
for automation_content in arr:
print "Test case automation_content #%d: %s " % (i, automation_content)
i = i + 1
Your configuration will now look like the image below.
Now, when your Universal Agent executes, it will print the output to the Universal Agent Console Log, like below.
Example 2: retrieve information of user who scheduled the Test Execution from $PROJECT_DATA variable
-
Open the Universal Agent execution page.
-
Go to Execute Command section.
-
Select Executor as node.
-
Enter the code below in the Execute Command editor:
Copyvar projectData = JSON.parse($PROJECT_DATA);
console.log(`Project ID: ${projectData.project_id}`);
console.log(`Job ID: ${projectData.properties.job_id}`);
console.log(`User ID: ${projectData.properties.user_schedule.id}`);
console.log(`User Name: ${projectData.properties.user_schedule.name}`);
Your configuration now looks like the image below.
Now, when your Universal Agent executes, it will print the output to the Console Log, like the image below.
Example 3: retrieve scheduled test cases from $TESTRUNS_LIST variable and print test case name and automation content to the console.
-
Open the Universal Agent execution page.
-
Go to the Execute Command section.
-
Select Executor as node.
-
Enter the code below in the Execute Command editor:
Copylet testrunsList = JSON.parse($TESTRUNS_LIST);
for (let i = 0; i < testrunsList.length; i++) {
let testrun = testrunsList[i];
console.log(`****** Test case #${i + 1} ******`);
console.log(`Name: ${testrun.test_case.name}`);
for(let j = 0; j < testrun.test_case.properties.length; j++) {
let prop = testrun.test_case.properties[j];
if (prop.field_name == 'Automation Content') {
let automationContent = prop.field_value;
console.log(`Automation Content: ${automationContent}`);
break;
}
}
}
Your configuration now looks like the image below.
Now, when your Universal Agent executes, it will print the output to the Console Log as seen below.
