Test Execution Dashboards

qTest, Tosca, or both	Chart Name	What is This Chart, and Why Use it?	Business Rules
Both	Latest Test Run Results	A pie chart that tracks and displays the amount of Test Runs with certain results over a given amount of recent time	Present the number of Test Run grouped by their latest status
Both	Test Run Status By Project	A horizontal bar graph that tracks, compares, and displays the amount of Test Runs with certain Status values per project	Counts Test Runs by project, break down by Test Run status
qTest	Test Run By Test Case Type	A grid chart that displays the amount of Tests Runs that belong to a given set of Test Case Types per project	Counts Test Runs of each project, breakdown by its Test Case Type
Both	Test Runs Per Requirement	A pie chart that tracks and displays the amount of Test Runs per a given set of Requirements
qTest	Tests Planned vs. Executed	A stacked bar chart and line graph that displays the amount of actual executed Test Runs with certain status values, per a given amount of time, vs the total amount of planned Executed Test Runs based off of the Test Run "Planned Start Date" set in Manager.	This chart shows the number of Test Run's planned and executed date. The line is accumulated number of Test Runs by Test Run's Planned Start Date. Stacked bars of the accumulated number of Test Runs broken down by Test Run Status. Each bar represent the number of Test Runs executed on "Last Execution Start Date"
qTest	Requirement - Execution Status By Release (also in Requirements dashboard)	A stacked bar chart that tracks and displays the amount of Requirements with certain Execution Statuses by Release	This chart counts requirements in every release, breakdown by its last run status (such as In a release, how many requirements whose last execution is Passed/ Failed/Blocked, etc.)
Both	Requirements Run Results (also in Requirements dashboard)	A pie chart that tracks and displays the amount of Test Run Requirements by Result	This chart shows the number of Test Runs (belong to Test Cases which have linked with a requirement) grouped by latest result

Both

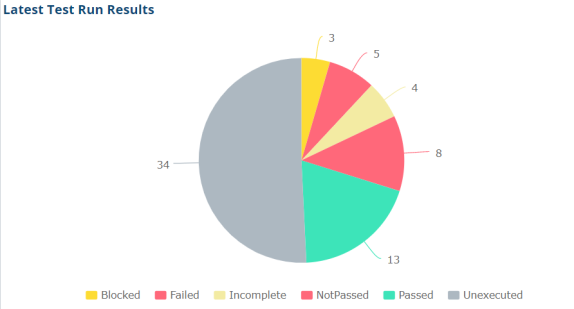

Latest Test Run Results

A pie chart that tracks and displays the amount of Test Runs with certain results over a given amount of recent time

Present the number of Test Run grouped by their latest status

Both

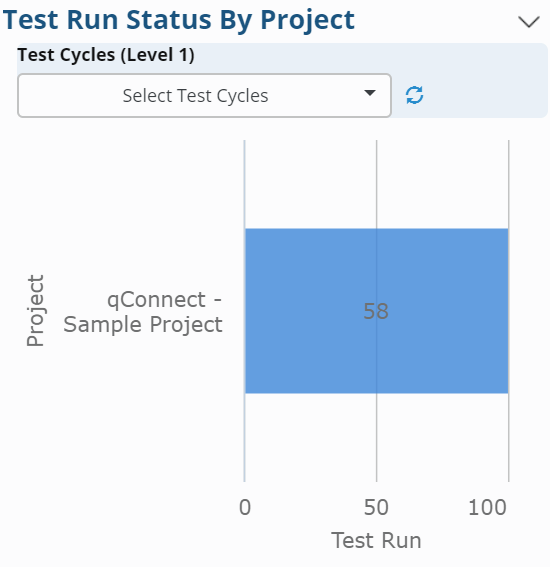

Test Run Status By Project

A horizontal bar graph that tracks, compares, and displays the amount of Test Runs with certain Status values per project

Counts Test Runs by project, break down by Test Run status

qTest

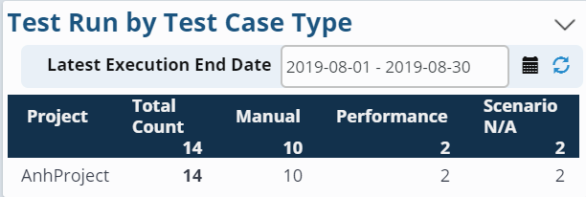

Test Run By Test Case Type

A grid chart that displays the amount of Tests Runs that belong to a given set of Test Case Types per project

Counts Test Runs of each project, breakdown by its Test Case Type

Both

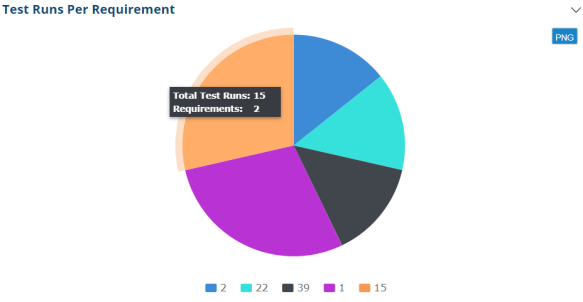

Test Runs Per Requirement

A pie chart that tracks and displays the amount of Test Runs per a given set of Requirements

qTest

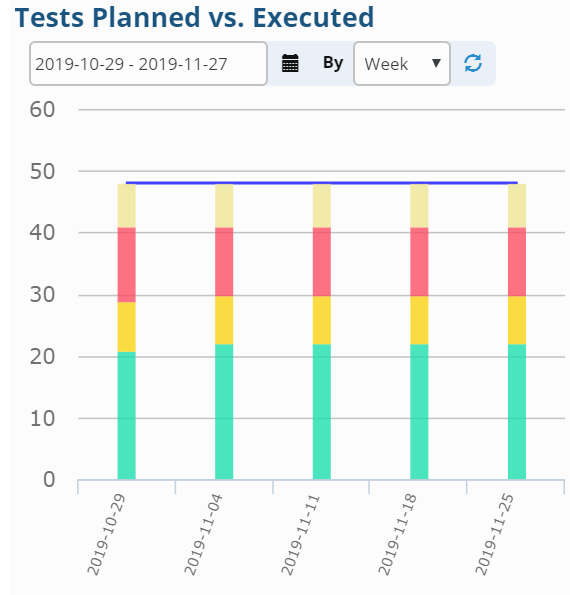

Tests Planned vs. Executed

A stacked bar chart and line graph that displays the amount of actual executed Test Runs with certain status values, per a given amount of time, vs the total amount of planned Executed Test Runs based off of the Test Run "Planned Start Date" set in Manager.

This chart shows the number of Test Run's planned and executed date. The line is accumulated number of Test Runs by Test Run's Planned Start Date. Stacked bars of the accumulated number of Test Runs broken down by Test Run Status. Each bar represent the number of Test Runs executed on "Last Execution Start Date"

qTest

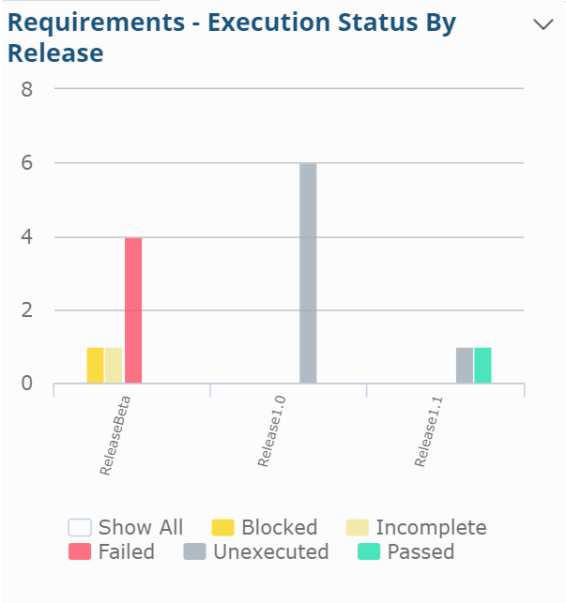

Requirement - Execution Status By Release

(also in Requirements dashboard)

A stacked bar chart that tracks and displays the amount of Requirements with certain Execution Statuses by Release

This chart counts requirements in every release, breakdown by its last run status (such as In a release, how many requirements whose last execution is Passed/ Failed/Blocked, etc.)

Both

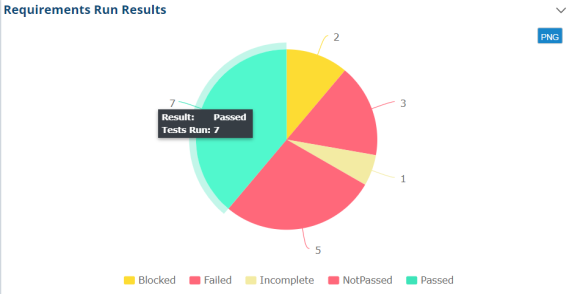

Requirements Run Results

(also in Requirements dashboard)

A pie chart that tracks and displays the amount of Test Run Requirements by Result

This chart shows the number of Test Runs (belong to Test Cases which have linked with a requirement) grouped by latest result
