On-premise status

The Status tab of the Settings view is only available to Administrators of NeoLoad Web deployed on-premise.

It allows you to verify the status of your on-premise installation.

Tip: Click the Export button on the top right of the screen to generate a Json file containing all the information of the Status page and share it easily outside of NeoLoad Web.

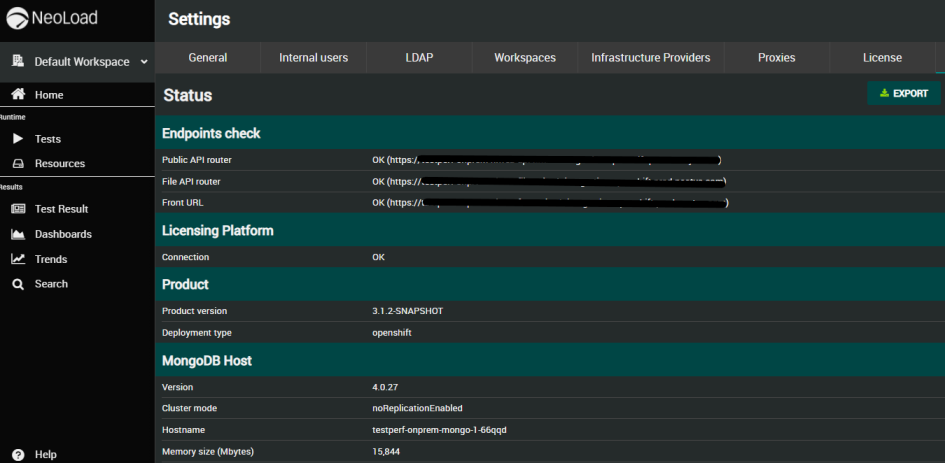

NLW-SettingsOnPremiseAdminStatus

The metrics displayed are:

Endpoints check

  • Public API router: check the connectivity between this browser and the Public API router

  • File API router: check the connectivity between this browser and the File API router

  • Front URL: check the hostname specified in the deployment configuration matches the hostname used in the browser URL

Licensing platform

  • Connection: check the connectivity between NeoLoad Web and the licensing platform

Product

  • Product version: the current version of the NeoLoad Web deployment

  • Deployment type: can be docker, docker-compose-all-in-one, docker-compose-all-in-one-ssl, docker-compose-external, docker-compose-external-ssl or windows-installer

MongoDB Host

  • Version: the MongoDB version

  • Cluster mode: whether replicaSet is enabled or not

  • Hostname: the hostname of the MongoDB

  • Memory size: the total amount of system memory (RAM)

  • Memory limit: the memory usage limit

  • Num cores: the total number of available logical processor cores

  • CPU arch: the system architecture. Either x86 or x86_64

  • OS type: the type of operating system, such as Linux or Windows

  • OS name: the name of the operating system

  • OS version: the name of the distribution or operating system

  • Max open files: the current system limits on open file handles

MongoDB Usage

  • Indexes: the total number of indexes across all collections in the database

  • Index size (bytes): the total size of all indexes created on this database

  • Collections: the number of collections in that database

  • Storage size (bytes): the total amount of space allocated to collections in this database for document storage, the storageSize does not decrease when documents are removed or shrinked

  • Data size (bytes): the total size of the uncompressed data held in this database, the dataSize decreases when documents are removed

Backend

  • Max memory (Mbytes): the maximum amount of memory that the Java virtual machine will attempt to use

  • Total memory (Mbytes): the total amount of memory in the Java virtual machine

  • Free memory (Mbytes): the amount of free memory in the Java Virtual Machine

  • OS version: the version of the OS

  • Java vendor: the Java vendor name

  • Java runtime name: the Java runtime name

  • Java runtime version: the Java runtime version

  • JVM version: the Java Virtual Machine version
