Analyze Requests metrics

The Requests section in the Trends view displays the requests metrics for the project and scenario selected in the Project and Scenario list boxes.

The Requests section displays the trends related to the requests metrics generated by the selected project.

Note: The Test Results are displayed in chronological order.

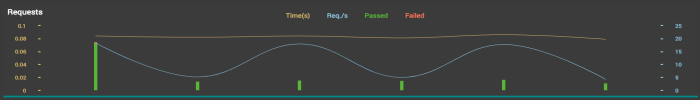

For each test, the requests metrics are illustrated as follows:

  • A vertical green/red bar representing the number of requests passed and/or failed.

  • A yellow dot standing for the average duration for requests.

  • A blue dot standing for the average number of requests per second.

As you move the mouse pointer over a bar, the Transactions, Requests, Throughputs and Virtual Users Iterations metrics for the selected Test Result are displayed in the corresponding sections. Below is an illustration for Requests metrics.

NLW-TrendsPopupRequests-1.4

The test name and status and the date when the test was launched are displayed below the metrics.

A click on a request metrics representation redirects you to the Test Result view. The Test Result view gives you valuable and accurate information about the selected Test Result. The Indicators zone in the view are those used in the Trends view.

For more information about the Test Result view, see Test Result view and Test Results.

NLW-TrendsRequestsMetrics

The Requests zone makes it possible to view and analyze the following metrics:

  • Time: This is the average duration for requests. A click on the Time item displays/hides the trend curve (brown) on the graph.
    The graph displays the trends for all the requests generated by the project and its associated scenario.

  • Req./s: This is the average number of requests per second. A click on the Req./s item displays/hides the trend curve (blue) on the graph.
    The graph displays the trends for all the requests generated by the project and its associated scenario.

  • Passed: A click on the Passed item displays/hides all the requests executed successfully.

  • Failed: A click on the Failed item displays/hides all the requests that encountered an error during the test.

Tip: For more details about requests success or failure in a test result, you can click on the corresponding test result
and have more details in the Test result view as described in Test result view.
