Install the NeoLoad module for CA APM

The NeoLoad module for CA APM allows sending information during the test to the CA APM component, and accessing CA APM Workstation through NeoLoad.

To enable the NeoLoad/CA APM integration, it is necessary to:

  • Install an additional component in the CA APM agent of the monitored application.

  • Enable the CA APM support in NeoLoad.

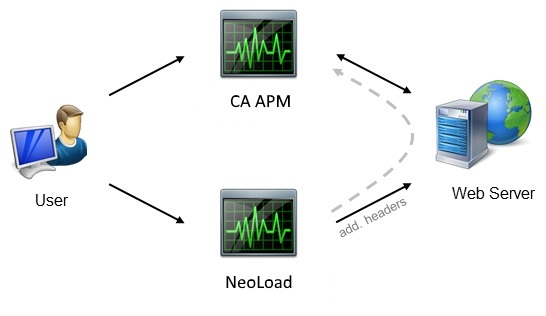

When the function is enabled, the NeoLoad module for CA APM sends HTTP headers with information about Virtual Users and transactions to CA APM. This makes it easier to analyze the root causes of slow or failed transactions which occur during load tests with CA APM which segregates web page response times and other performance metrics using the information provided by NeoLoad.

In the CA APM Java agent

To use the NeoLoad module for CA APM, it is necessary to install the Synthetic User Field Pack Extension in the CA APM Java agent for Java applications.

Then the detection of synthetic transactions must be configured as described here.

When following the procedure to configure the detection of synthetic transactions, the values of the keys mentioned below must be specified as follows:

Copy
introscope.agent.synthetic.node.name=Synthetic_Transaction
introscope.agent.synthetic.user.name=SyntheticID

To install the Synthetic User Field Pack extension in the Java agents, follow these steps:

  1. Install a CA APM (Introscope) Java agent (version 7.x or above) on the server hosting the application to be monitored.

  2. Configure the detection of synthetic transactions as explained above.

In the CA APM .NET agent

To use the NeoLoad module for CA APM, it is necessary to install the Synthetic User Field Pack Extension in the CA APM agent.

Then the detection of synthetic transactions must be configured as described here.

When following the procedure to configure the detection of synthetic transactions, the values of the keys mentioned below must be specified as follows:

Copy
introscope.agent.synthetic.node.name=Synthetic_Transaction
introscope.agent.synthetic.user.name=SyntheticID

To install the Synthetic User Field Pack extension in the .NET agents, follow these steps:

  1. Install a CA APM (Introscope) .NET agent (version 7.2.2.0 or above) on the server hosting the application to be monitored.

  2. Configure the detection of synthetic transactions as explained above.
