Miscellaneous

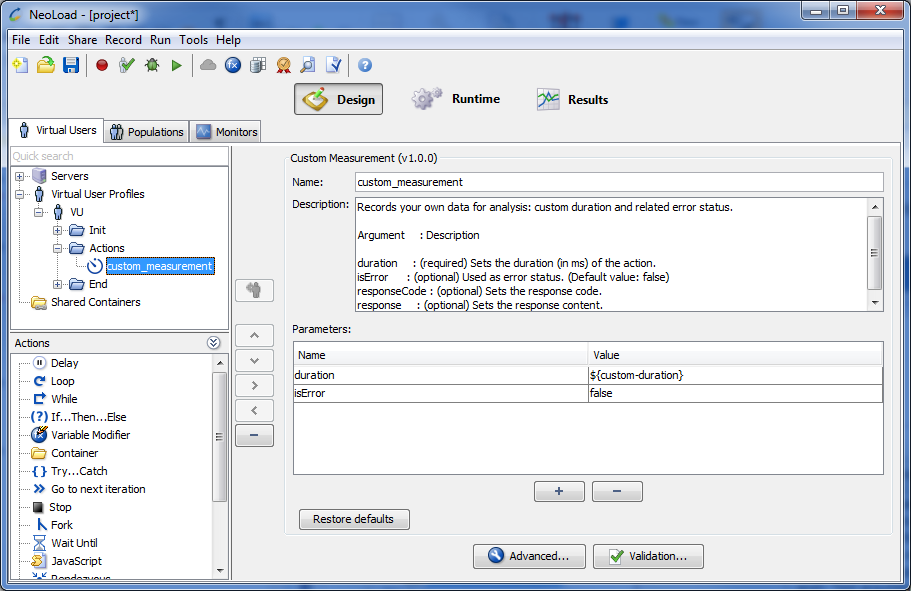

Custom Measurement

The Custom Measurement Advanced action enables you to record customized data to perform an analysis of an action.

Typically used to track the values of a NeoLoad variable over time, the variable value being generally extracted from an HTTP or SQL response, or computed by Javascript. This is very interesting to monitor a business metric of an application like the number of orders being processed in the previous minute for example.

Parameters:

  • duration: The duration (in ms) of the action.

  • isError (optional): sets the Advanced action response in error. (Default value: false)

  • responseCode (optional): Sets the response code.

  • response (optional): Sets the response content.

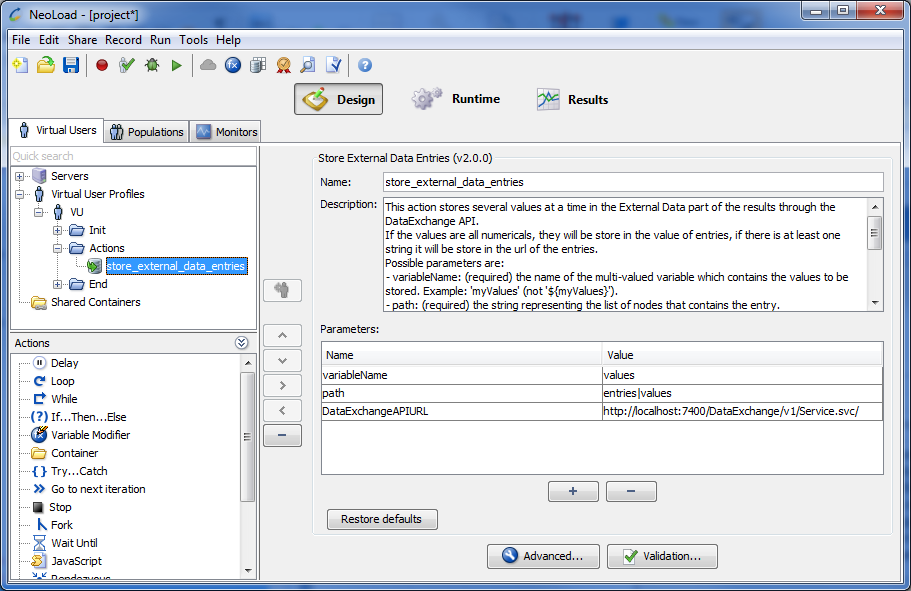

Store External Data Entries

The Store External Data Entries Advanced action stores several values at a time using the Data Exchange API. Theses values are referred to as “External Data” in the Runtime and Results tabs. A typical use is to grab business-related metrics through a Variable Extractor or through the SQL action and store them for later analysis. The entry values can be structured in a tree by specifying different paths in the path parameter.

Note: If at least one of the variable values is not numerical, all values will be displayed in the URL column of the External Data.

Parameters

  • variableName: The name of the multi-valued variable which contains the values to be stored. Example: “myValues” (not “${myValues}”).

  • path: The string representing the list of nodes that contains the entry.

  • unit (optional): The unit of the entry.

  • code (optional): The string code of the status associated to the entry.

  • message (optional): The message of the status associated to the entry.

  • state (optional): The state of the status associated to the entry. Possible values are PASS and FAIL.

  • DataExchangeAPIURL (optional): Where the DataExchange server is located. Optional, by default it is: http://${NL-ControllerIp}:7400/DataExchange/v1/Service.svc/.

  • DataExchangeAPIKey: The identification key specified in NeoLoad.

Examples

An example of values stored from a multi-valued variable:

  • variableName: ids

  • path: index|ids

A full example of values stored from a multi-valued variable:

  • variableName: categories

  • path: index|categories

  • code: ERROR_INVALID_HANDLE

  • message: The handle is invalid.

  • state: FAIL

  • DataExchangeAPIKey: myKey

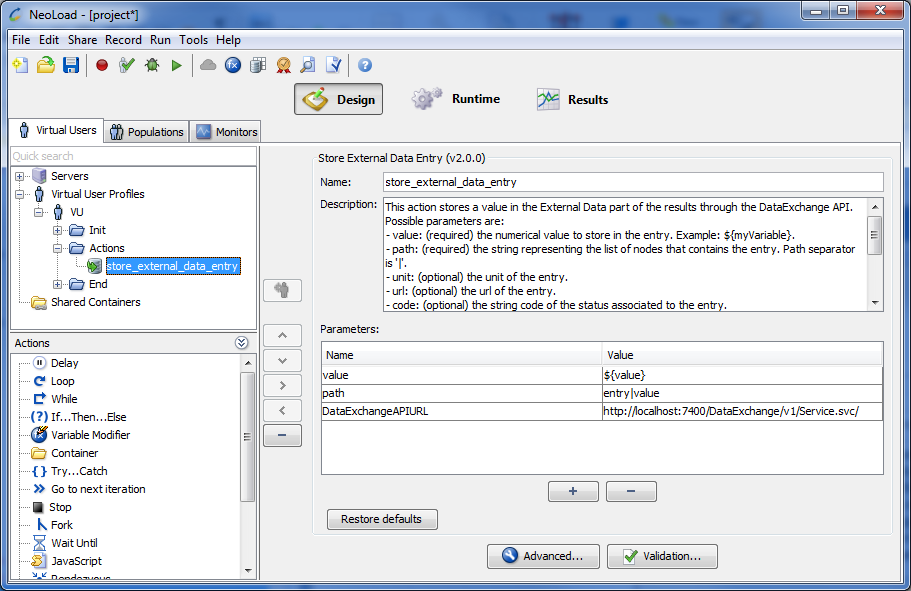

Store External Data Entry

The Store External Data Entry Advanced action stores a numerical value using the Data Exchange API. This value is referred to as “External Data” in the Runtime and Results tabs. A typical use is to grab business-related metrics through a Variable Extractor or through the SQL action and store them for later analysis. The entry values can be structured in a tree by specifying different paths in the path parameter.

Parameters

  • value: The numerical value to store in the entry. Example: “${myVariable}”.

  • path: The string representing the list of nodes that contains the entry. Path separator is ‘|’.

  • unit (optional): The unit of the entry.

  • url (optional): The url of the entry.

  • code (optional): The string code of the status associated to the entry.

  • message (optional): The message of the status associated to the entry.

  • state (optional): The state of the status associated to the entry. Possible values are PASS and FAIL.

  • DataExchangeAPIURL (optional): Where the DataExchange server is located. Optional, by default it is: http://${NL-ControllerIp}:7400/DataExchange/v1/Service.svc/.

  • DataExchangeAPIKey: The identification key specified in NeoLoad.

Examples

An example of values stored from a variable:

  • value: ${time}

  • path: time

  • unit: ms

A full example of values stored from a variable:

  • value: ${executionTime}

  • path: variables|int|executionTime

  • unit: ms

  • url: http://www.myapp/script1

  • code: ERROR_INVALID_HANDLE

  • message: The handle is invalid.

  • state: FAIL

  • DataExchangeAPIKey: myKey
