Record a RealBrowser user path

With NeoLoad, you can record a web application user path through the browser.

The recording launches a Chromium instance and intercepts all interactions between the user and the browser.

Each interaction turns into a Browser Action, and the target elements (DOM elements) of those interactions are identified using the RealBrowser recorder internal algorithm.

A RealBrowser recording leads to a valid Check VU most of the time. However, more complex applications may require some immediate design to be functional.

The RealBrowser recorder is accessible via:

• The Start recording button in the toolbar.

• The Record > Start RealBrowser Recording menu.

To enable a recording, follow these steps:

1. Open the RealBrowser tab in the recorder launcher panel.

2. Toggle the Enable RealBrowser recording checkbox.

Note: Unlike other NeoLoad protocols, the RealBrowser protocol is standalone when recording. When you enable this protocol, it disables other types of recorders.

Recorder launcher settings

There are a variety of settings that can impact the behavior of the browser. These settings are located in the recorder launcher. Record with the settings that make the most sense for your use case.

Once selected, the settings are included in the OpenBrowser action. This ensures record time and run time share the same behavior.

Note: All settings defined in the RealBrowser recorder panel are persisted in the user preferences.

General settings

Advanced settings

Record an application

After the parameters are set, click OK. A Chromium browser instance opens with the NeoLoad Recording Welcome page. Here you have two possibilities:

• Click on one of the last recorded URLs.

• Enter a new URL in the browser address bar.

Now you can simulate the actions you want to replicate at scale. All your interactions (minus those listed in record limitations) are recorded as Browser Actions in a new user path.

When recording, a toolbar appears that provides additional capabilities:

• Pause the record, in case there are interactions that you don't want to record.

• Resume the record.

• Stop the record.

• Change the current top-level container that receives the recorded actions.

• Change or create the current transaction that receives the recorded actions.

• Add mouse over action during recording.

Record Mouseover actions

To record mouse over actions, follow these steps:

1. Select Mouseover from the record toolbar.

2. On the webpage, right-click where you want to add a mouse over action.

3. Continue the user path in NeoLoad.

4. To disable mouse over mode, select the Mouseover action icon on the record bar.

Record WaitSelector actions

1. Select the WaitSelector action iconon the record toolbar.

2. On the webpage, right-click where you want to add a WaitSelector action.

3. Continue the user path in NeoLoad.

4. To disable the WaitSelector mode, select the WaitSelector action icon on the record bar.

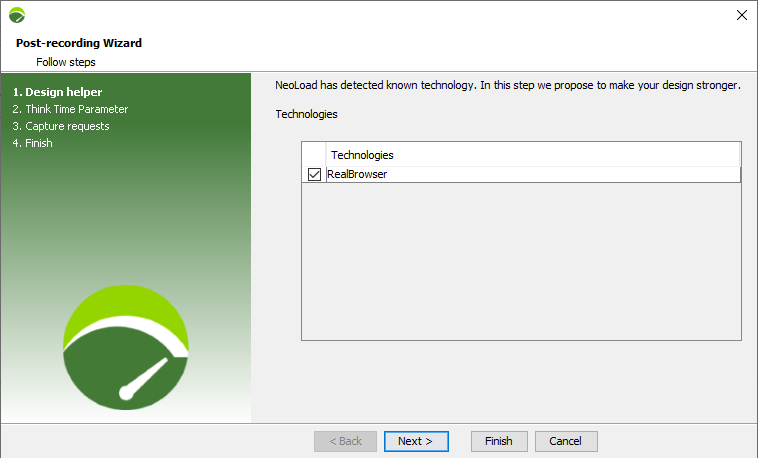

Post-recording Wizard

When a recording session ends, a Post-recording Wizard panel appears. It gives the following options:

• Redesign the just-recorded user path to increase its robustness (recommended)

  • This step surrounds all recorded actions for this user path into a try-catch block. It also adds an extra CloseBrowser action at the end. This improves the error management and ensures browsers are correctly closed at the end of each iteration when a scenario at scale is run.

• Override recorded think-times

Press Finish if you want to skip these steps.

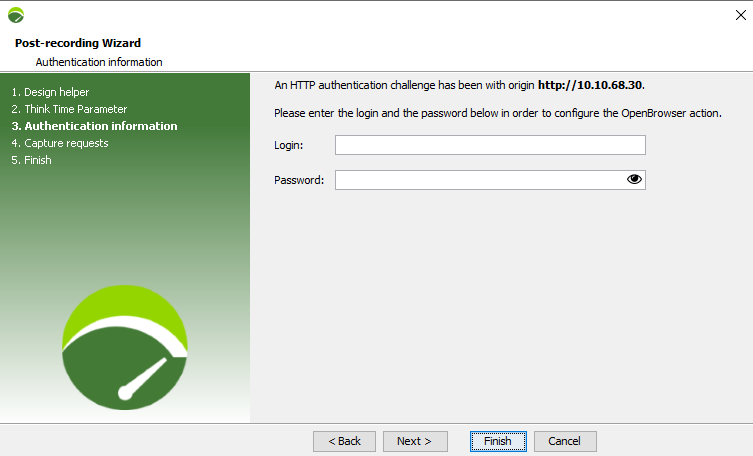

Prompt user for credential post-recording

When you're done recording with RealBrowser, the Post-recording Wizard automatically looks for any login screens you might have encountered during the recording. If it finds any, it will ask you to fill in these details.

Enter your login details here to help NeoLoad log in automatically next time.

Here’s what happens in the Authentication information step:

• RealBrowser shows where you first saw a login screen during your recording.

• You get two boxes to fill in: one for your Login and another for your Password.

Once you enter these details and move to the next step, RealBrowser remembers them. The next time you test the website, it automatically logs in for you, so you don't have to enter these details again.

If you choose not to fill in your login details, or if you close the assistant without entering them, RealBrowser still gets ready to handle a login screen. But, since it doesn't have your details, it will wait for you to enter them when you're testing the website later.

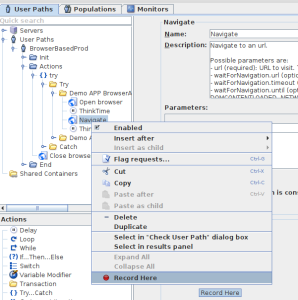

Use the Record Here feature

You can insert more steps inside your user path with the Record Here feature:

1. In User Paths, right click on the action where you want to insert new steps.

2. Click on the Record Here item. Note that the values configured from the Open browser are used in the Record Here.



The RealBrowser Recorder plays all preceding actions and new actions.

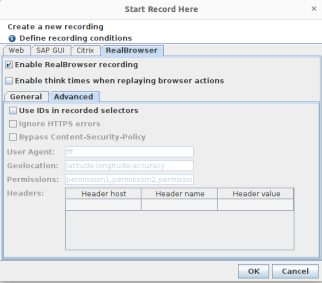

If enabled, you can play the Think Time when you record. By default, the following are enabled in the RealBrowser tab.

• Recorded selectors type

• Use IDs in recorded selectors

To Enable/Disable Think Time in the Start Record Here panel, follow these steps:

• Open the Record panel with the Record Here mode

• Select Enable think time when replaying browser actions.

When enabled, Think Time plays in the Record Here mode.

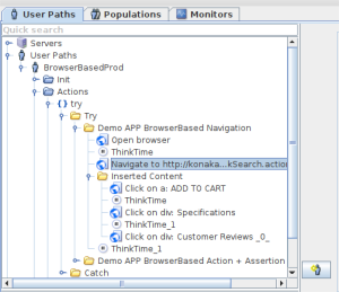

You can find your recordings in the default Inserted Content container. You have the ability to choose the name of the container.

Use an Application Proxy to Record

Please refer to the section describing how to use an Application Proxy at runtime.

The difference in Application Proxy usage between record time and runtime is that instead of basing the proxy url protocol on the first Navigate action in the user path, the HTTPS protocol is favored and defaults to the HTTP protocol if empty.

Define custom attributes

A custom HTML attribute to identify elements easily during testing is:

<div data-test-id="123456">...</div>

You can hint the recorder to exploit attributes when you add realBrowser.customAttributeSelectors=data-testid under the RealBrowser section in the controller_user.properties file.

This file is located under:

• For Windows: C:\Users\${user}\AppData\Roaming\Neotys\NeoLoad\${neoload.version}\conf

• For Linux: /home/${user}/.neotys/neoload/${neoload.version}/conf/

Note: To record several custom selector attributes, you can separate them by ';". For example: realBrowser.customAttributeSelectors=customSelectorAttribute1;customSelectorAttribute2;customSelectorAttribute1

Record limitations

By default, the RealBrowser recorder doesn't record these actions:

• MouseOver. For example, if you click inside a submenu, we don't record the previous hovering of the main menu. However, you can enable this by selecting the MouseOver action icon on the record bar.

• Scroll. While most RealBrowser actions auto-scroll to show target elements, in cases, such as infinite scrolling, you can manually add Scroll actions to the user path in design.

• The browser Forward and Back button events. This means these actions don't appear in the user path. You can include them in the user path design by using the button parameter in the BrowserClick.

• HTTP authentication prompts interactions. Consequently, after recording, you need to set your credentials in the Post-recording Wizard.

Note that each tab records only one navigation action. Any other navigation comes from clicks or key presses on page links.
