JMS

Connect

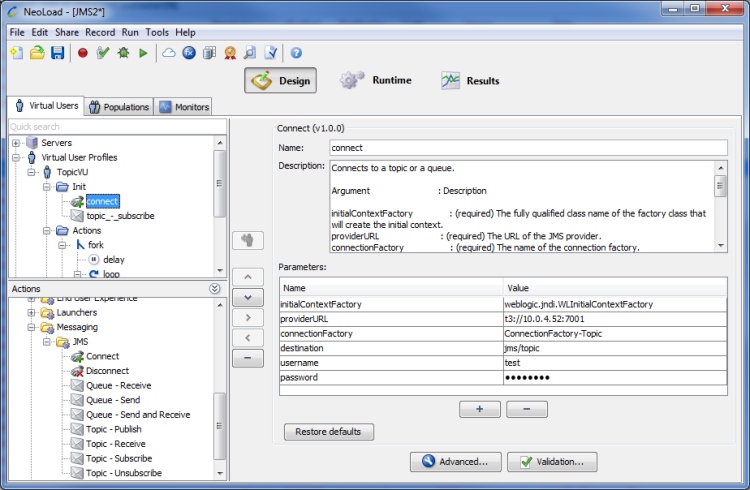

The Connect JMS Advanced action is used to connect to a topic or a queue.

Supported JMS API versions: 1.1 and 2.0.

Note: NeoLoad does not include any JMS implementation JAR file. It must be downloaded from your JMS provider and put in the extlib directory of your installation.

Parameters:

  • initialContextFactory (required): The fully qualified class name of the factory class that will create the initial context.

  • providerURL (required): The URL of the JMS provider.

  • connectionFactory (required): The name of the connection factory.

  • destination (required): The name of the (topic or queue) destination. It's used as the connection ID. A User Path cannot have two connections to a same destination.

  • username (optional): The username used to create the connection.

  • password (optional): The password used to create the connection.

  • sessionTransacted (optional): A boolean to indicate whether the session is transacted.

  • acknowledgeMode (optional): Indicates whether the consumer or the client will acknowledge any messages it receives; ignored if the session is transacted. Legal values: AUTO_ACKNOWLEDGE, CLIENT_ACKNOWLEDGE or DUPS_OK_ACKNOWLEDGE

  • jndiProperties (optional): JNDI properties to construct the initial context. The value must follow the pattern name=value separated by '\n'. Example: datasource=jdbc/aqjmsuserDataSource.

Examples

An example of an SSL connection to a Tibco queue:

  • initialContextFactory: com.tibco.tibjms.TibjmsQueueConnectionFactory

  • providerURL: ssl://tibco.example.com:7222

  • connectionFactory: SSLQueueConnectionFactory

  • destination: myQueueName

  • username: userName

  • password: password

    jndiProperties: com.tibco.tibjms.naming.security_protocol=ssl,com.tibco.tibjms.naming.ssl_enable_verify_host=true,com.tibco.tibjms.naming.ssl_enable_verify_hostname=false,com.tibco.tibjms.naming.ssl_trusted_certs=${NL-CustomResources}/my_certificate.cer

Note: The SSL certificate must be placed in the ‘custom-resources' folder of the NeoLoad project. The ressources contained in this folder are automatically pasted into the Load Generators. The ${NL-CustomResources} variable is used to access this folder from the Load Generators.

An example of connecting to a Oracle Weblogic topic:

  • initialContextFactory: weblogic.jndi.WLInitialContextFactory

  • providerURL: t3://10.0.0.51:7001

  • connectionFactory: myTopicFactory

  • destination: myTopicName

  • username :user

  • password: password

Disconnect

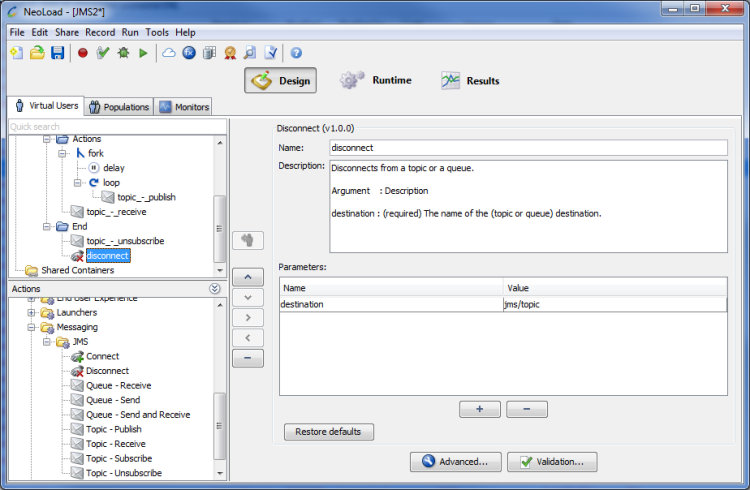

The Disconnect JMS Advanced action is used to disconnect from a topic or a queue.

Parameter:

  • destination (required): The name of the (topic or queue) destination.

An example of disconnecting from a queue:

  • destination: myQueueName

Queue - Send

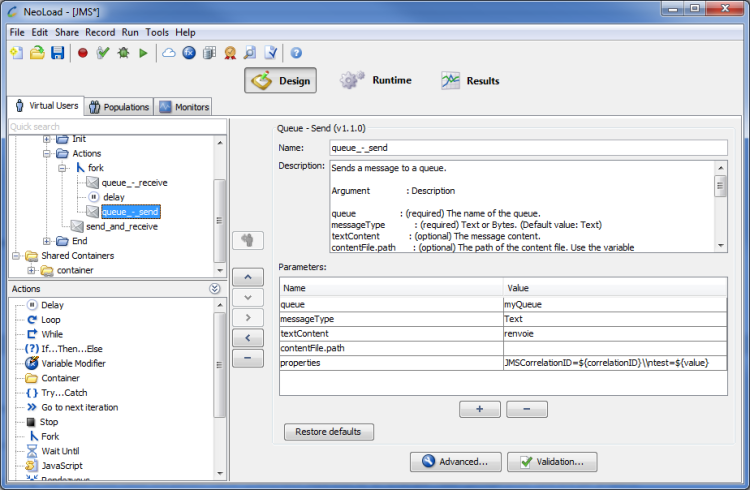

The Queue - Send JMS Advanced action is used to send a message to a queue.

Parameters:

  • queue (required): The name of the queue.

  • messageType (required): Text or Bytes.

  • textContent (optional): The message content.

  • contentFile.path (optional): The path of the content file. Use the variable '${NL-CustomResources}' to access on the Load Generator the synchronized resources located in the 'custom-resources' folder of the project.

  • contentFile.charset (optional): The charset of the file.

  • contentFile.parse (optional): Whether or not to parse the file to replace NeoLoad variables.

  • expiration (optional): The expiration time (in ms) before the message becomes obsolete. When set to default value (0) the message does not expire.

  • priority(optional): The priority of the message.

  • persistentDeliveryMode (optional): Whether or not to set DeliveryMode.NON_PERSISTENT.

  • properties (optional): You can setup the name, the value and the class (type) of value. Default type is String. The value must follow the pattern name=[class]value separated by "\\n".

    Example : JMSCorrelationID=${correlationID}\\ntest=${value}.

Note: Click the pencil icon to add a row per property when editing in the multi-lines dialog.

Examples

An example of sending a message on a queue:

  • queue: myQueueName

  • messageType: Text

  • textContent: my content

  • properties: my_property=my_value

An example of sending a bytes message from a file:

  • queue: myQueueName

  • messageType: Bytes

  • contentFile.path: ${NL-CustomResources}\myfile

  • contentFile.parse: false

  • priority: 1

  • persistentDeliveryMode: false

  • properties: size=[java.lang.Integer]1500

Queue - Send and Receive

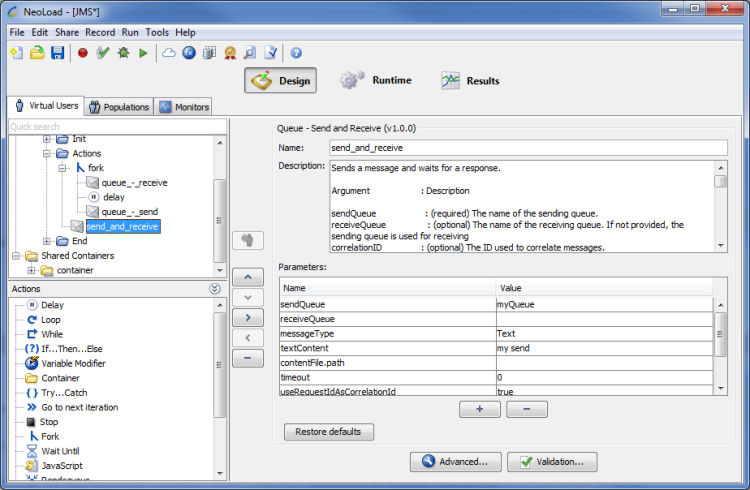

The Queue - Send and Receive JMS Advanced action is used to send a message. It waits for a response.

Parameters:

  • sendQueue (required): The name of the sending queue.

  • receiveQueue (optional): The name of the receiving queue. If not provided, a temporary queue created from the sending queue is used for receiving.

  • correlationID (optional except if parameter useRequestIdAsCorrelationId is set to false): The ID used to correlate messages.

  • messageType (required): Text or Bytes.

  • textContent (optional): The message content.

  • contentFile.path (optional): The path of the content file. Use the variable ${NL-CustomResources} to access on the Load Generator the synchronized resources located in the 'custom-resources' folder of the project.

  • contentFile.charset (optional): The charset of the file.

  • contentFile.parse (optional): Whether or not to parse the file to replace NeoLoad variables.

  • expiration (optional): The expiration time (in ms) before the message becomes obsolete. When set to default value (0) the message does not expire.

  • priority (optional): The priority of the message.

  • persistentDeliveryMode (optional): Whether or not to set DeliveryMode.NON_PERSISTENT.

  • properties (optional): You can setup the name, the value and the class (type) of value. Default type is String. The value must follow the pattern name=[class]value separated by "\\n".

  • Example: size=[Integer]150.

    Note: Click the pencil icon to add a row per property when editing in the multi-lines dialog.

  • useRequestIdAsCorrelationId (optional): If set to true, the JMSMessageID request will be used for correlation, otherwise the JMSCorrelationID request will be used.

  • useResponseIdAsCorrelationId (optional): If set to true, the JMSMessageID response will be used for correlation, otherwise the JMSCorrelationID response will be used.

  • timeout (optional): Timeout (in ms) applied to wait a message. 0=none.

  • jmsSelector (optional): The message selector to extract only the message that respect the selector condition.

  • writeMessageInResponse (optional): Whether or not the response should contain the message.

  • failOnTimeout (optional): If set to true, the action fails when timeout is reached.

Examples

An example of send and receive on one queue:

  • sendQueue: myQueueName

  • correlationID : my_id

  • messageType: Text

  • textContent: my content

  • properties: my_property=my_value

  • timeout: 0

  • jmsSelector: my_property='my_value'

  • writeMessageInResponse: false

An example of send and receive on two queues:

  • sendQueue: mySendingQueueName

  • sendQueue: myReceivingQueueName

  • messageType: Text

  • textContent: my content

  • properties: my_property=my_value

  • useRequestIdAsCorrelationId: true

  • useResponseIdAsCorrelationId: true

  • timeout: 10000

  • jmsSelector: my_property='my_value'

Queue - Receive

The Queue - Receive JMS Advanced action is used to receive a message from a queue. It waits until the message is received.

Parameters:

  • queue (required): The queue name.

  • timeout (required): Timeout (in ms) applied to wait a message. 0=none.

  • jmsSelector (required): The message selector to extract only the message that respect the selector condition.

  • writeMessageInResponse (required): Whether or not the response should contain the message.

  • failOnTimeout (required): If set to true, the action fails when timeout is reached.

An example of receiving message:

  • queue: myQueueName

  • timeout: 5000

  • jmsSelector: my_property='my_value'

  • writeMessageInResponse: false

  • failOnTimeout: false

Topic - Subscribe

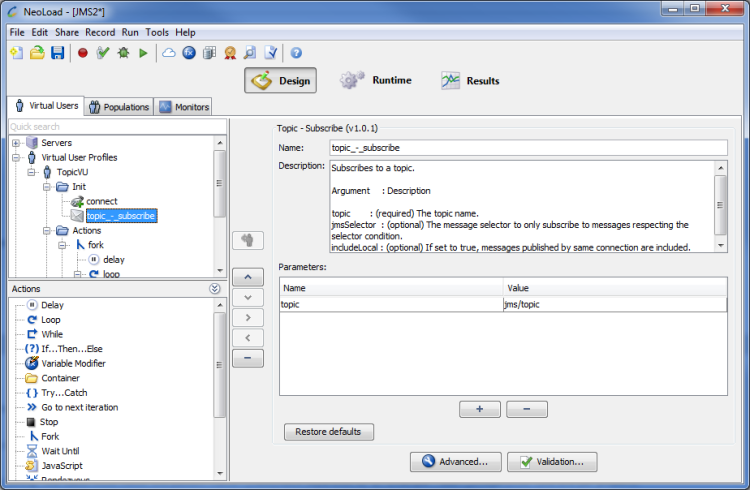

The Topic - Subscribe JMS Advanced action is used to subscribe to a topic.

Parameters:

  • topic (required): The topic name.

  • jmsSelector (optional): The message selector to only subscribe to messages respecting the selector condition.

  • includeLocal (optional): If set to true, messages published by same connection are included.

An example of topic subscription:

  • topic: myTopicName

  • jmsSelector: my_property='my_value'

  • includeLocal: false

Topic - Unsubscribe

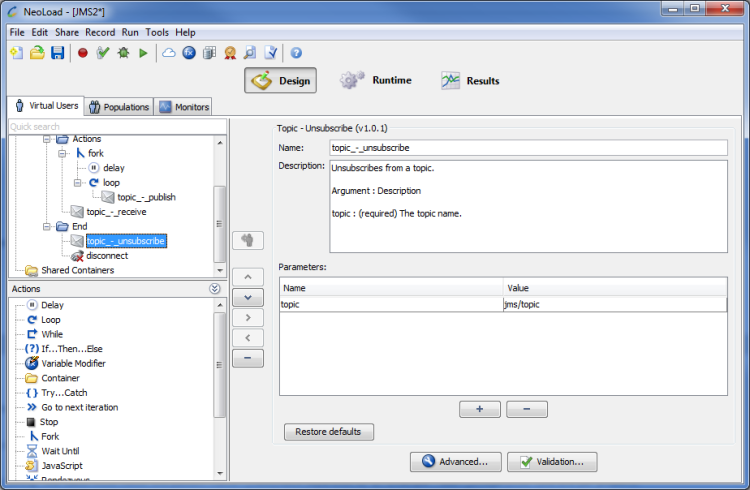

The Topic - Unsubscribe JMS Advanced action is used to unsubscribe from a topic.

Parameter:

  • topic (required): The topic name.

An example of unsubscribing from a topic:

  • topic: myTopicName

Topic - Publish

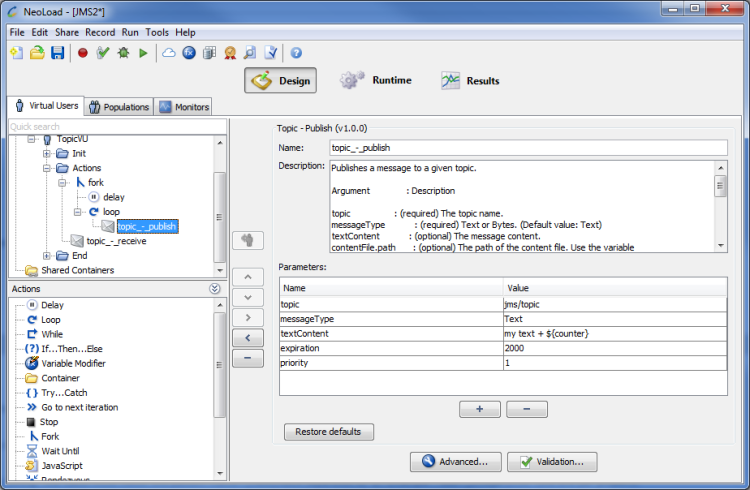

The Topic - Publish JMS Advanced action is used to publish a message to a given topic.

Parameters:

  • topic (required): The topic name.

  • messageType (required): Text or Bytes.

  • textContent (optional): The message content.

  • contentFile.path (optional): The path of the content file. Use the variable '${NL-CustomResources}' to access on the Load Generator the synchronized resources located in the 'custom-resources' folder of the project.

  • contentFile.charset (optional): The charset of the file.

  • contentFile.parse (optional): Whether or not to parse the file to replace NeoLoad variables.

  • expiration (optional): The expiration time (in ms) before the message becomes obsolete. When set to default value (0) the message does not expire.

  • priority (optional): The priority of the message.

  • persistentDeliveryMode (optional): Whether or not to set DeliveryMode.NON_PERSISTENT.

  • properties (optional): You can setup the name, the value and the class (type) of value. Default type is String. The value must follow the pattern name=[class]value separated by "\\n".

    Example: size=[Integer]150.

Note: Click the pencil icon to add a row per property when editing in the multi-lines dialog.

Examples

An example of sending a text message:

  • topic: myTopicName

  • messageType: Text

  • textContent: my content

An example of connecting to a Oracle Weblogic topic:

  • initialContextFactory: weblogic.jndi.WLInitialContextFactory

  • providerURL: t3://10.0.0.51:7001

  • connectionFactory: myTopicFactory

  • destination: myTopicName

  • username: user

  • password: password

Topic - Receive

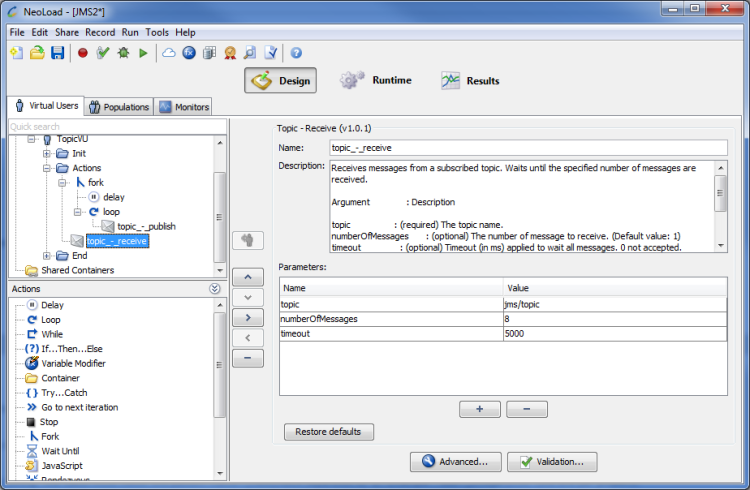

The Topic - Receive JMS Advanced action is used to receive messages from a subscribed topic. It waits until the specified number of messages are received.

Parameters:

  • topic (required): The topic name.

  • numberOfMessages (optional): The number of message to receive.

  • timeout (optional): Timeout (in ms) applied to wait all messages. 0=none.

  • writeMessageInResponse (optional): Whether or not the response should contain the messages.

  • failOnTimeout (optional): If set to true, the action fails when timeout is reached.

An example of receiving 10 messages from a topic:

  • queue: myTopicName

  • timeout: 5000

  • numberOfMessages: 10
