Update LiveCompare Service Configuration Wizard

The Update LiveCompare Service Configuration Wizard may be used to do one or more of the following:

Encrypt, re-encrypt or decrypt SQLite databases.
Set a new password for the LiveCompare service account.
Change the LiveCompare URL scheme, for example from http: to https:.

The effects of encrypting SQLite databases are as follows:

Workspace databases stored in the <user data dir>\private\workspaces folder on the LiveCompare server are encrypted.
Newly created workspaces are encrypted.
If encryption is turned on, registering an unencrypted workspace will encrypt it.
Object Links Cache databases are encrypted.
Existing and newly created performance history data and SC_MON data databases are encrypted.
SQLite databases used by LiveCompare and stored in the <user data dir>\private folder are encrypted.
SQLite External Data Sources are not encrypted.
Encrypted databases may not be examined or modified by SQLite analysis tools.

Before changing LiveCompare’s database encryption status, either:

From Unencrypted to Encrypted, or
From Encrypted to Re-encrypted, or
From Encrypted to Unencrypted

you will need to back up the user data directory on your LiveCompare server.

Encryption or decryption of existing SQLite databases is performed in the last step of the Update LiveCompare Service Configuration Wizard. Databases are encrypted at an approximate rate of 30MB per second. The time taken for SQLite databases to be encrypted, re-encrypted or decrypted depends on their size. The following table provides some approximate values.

	User data = 100MB	User data = 1GB	User data = 100GB
Encrypt databases	9 seconds	33 seconds	45 minutes
Re-encrypt databases	9 seconds	38 seconds	54 minutes
Decrypt databases	5 seconds	33 seconds	49 minutes

Before running the Wizard, make sure that no users are currently logged in to LiveCompare, and that no apps or workflows are currently running. To start the Wizard, select the ‘Update LiveCompare Service Configuration’ app from the Windows Start menu. The following screen is displayed.

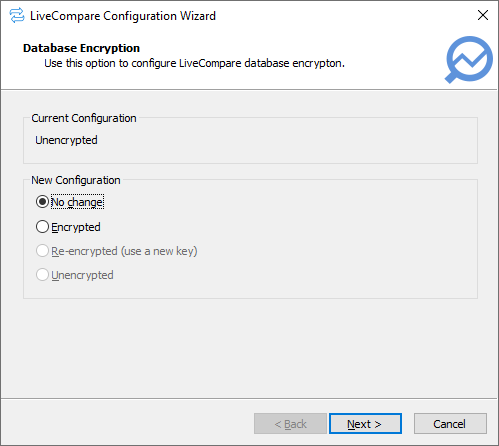

Database Encryption screen.

The Current Configuration section indicates the current database encryption setting, either Encrypted or Unencrypted.

The New Configuration section allows you to adjust the configuration.

Before changing LiveCompare’s database encryption status, either:

From Unencrypted to Encrypted, or
From Encrypted to Re-encrypted, or
From Encrypted to Unencrypted

you will need to back up the user data directory on your LiveCompare server.

Select ‘No change’ to keep the configuration as it is.
Select ‘Encrypted’ to encrypt workspace databases on the LiveCompare server. This option is available if the current configuration is ‘Unencrypted’.
Select ‘Re-encrypted (use a new key)’ to re-encrypt the workspace databases using a new key. This option is available if the current configuration is ‘Encrypted’.
Select ‘Unencrypted’ to decrypt the workspaces. This option is available if the current configuration is ‘Encrypted’.

Click Next > to continue. The Database Encryption screen is displayed.

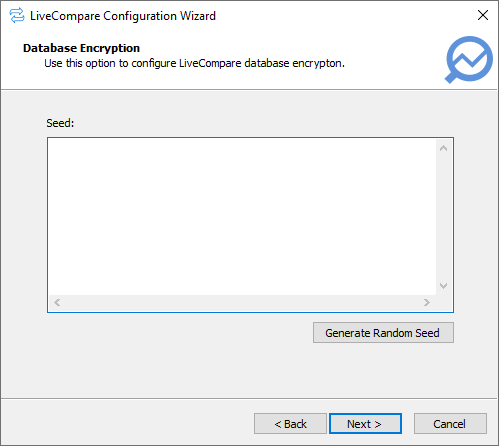

Database Encryption (Seed) screen.

If you have chosen ‘Encrypted’ or ‘Re-encrypted (use a new key)’, click ‘Generate Random Seed’ to generate a random seed to use for the encryption. Alternatively, enter or paste a seed value into the Seed field. If any other option is chosen, the Seed field is disabled.

Click Next > to continue. The Service Configuration screen is displayed.

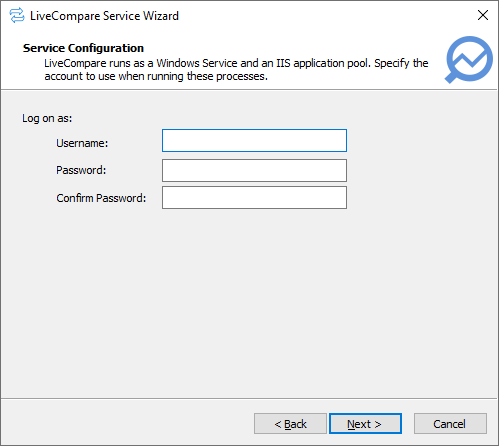

Service Configuration screen.

Complete the screen fields by specifying:

The account name and new password for the existing LiveCompare service account, or
The account name and password for a new LiveCompare service account.

In each case, the account should be local to the LiveCompare server machine and a member of the local Administrators group.

Note: Changing the LiveCompare service account name will invalidate any existing RFC Destinations that use a secure network connection. See the Create secure RFC Destinations help topic for details.

Click ‘Next>’ to continue. The Account Rights screen is displayed.

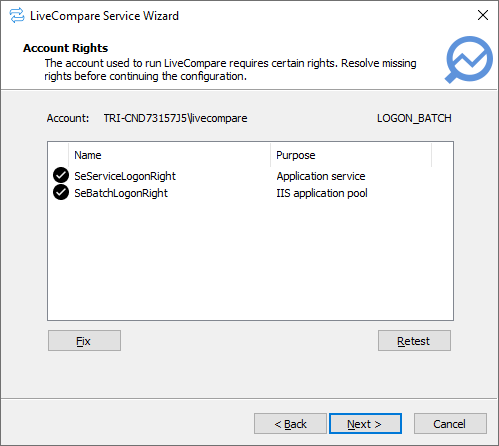

Account Rights screen.

This screen lists the rights required for the LiveCompare account. Rights that are present marked with Tick icon. . Rights that are missing are marked with Cross icon. . If any rights are missing, click ‘Fix’ to apply the missing rights to the LiveCompare account.

To apply any missing rights manually, carry out the following steps.

Run the Local Security Policy applet on the LiveCompare server.
Select the Security Settings > Local Policies > User Rights Assignment folder.
If the SeServiceLogonRight right is missing, display the properties for Log on as a service, and add the LiveCompare account.
If the SeBatchLogonRight right is missing, display the properties for Log on as a batch job, and add the LiveCompare account.
Click ‘Retest’ and check that there are no missing rights.

Click ‘Next>’ to continue. The URL Scheme screen is displayed.

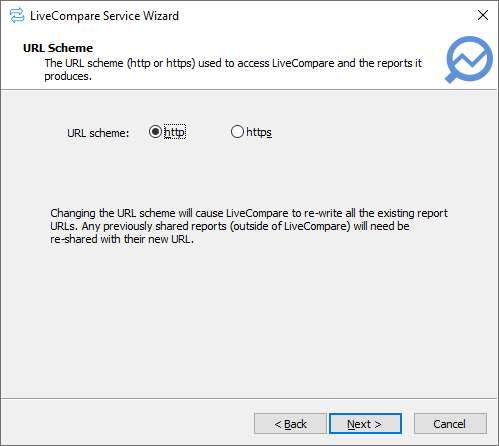

URL Scheme screen.

Select the URL scheme to be used by LiveCompare. If you choose ‘https’, IIS must be configured separately to support https, as described here. If you are upgrading from an earlier release of LiveCompare and have changed the URL scheme, the URLs of any existing URL-based reports will be adjusted to reflect the new scheme.

Note: A warning message is displayed if the URL scheme does not match the scheme used for the ReportBaseUrl field set in the Configuration - Reports screen for an earlier release of LiveCompare. In this case, you must use the same URL scheme or update the ReportBaseUrl field once LiveCompare is configured.

Click ‘Next>’ to continue. The Completing LiveCompare Configuration screen is displayed.

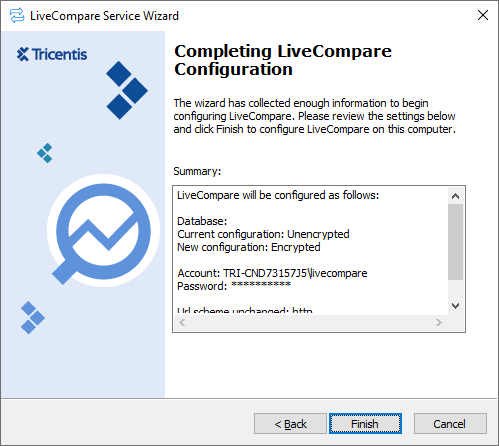

Completing LiveCompare Configuration screen.

Review the summary settings and click Finish to complete the Wizard. The Wizard will do the following:

Encrypt, re-encrypt or decrypt workspace databases as required.
Encrypt, re-encrypt or decrypt Object Links Cache databases as required.
Encrypt, re-encrypt or decrypt performance history data and SC_MON data databases as required.
Encrypt, re-encrypt or decrypt SQLite databases in the <user data dir>\private folder.
Set the username and password for the LiveCompare service account.
Adjust the LiveCompare URL scheme as required.

When the configuration process is complete, the LiveCompare Service Configuration screen is displayed.

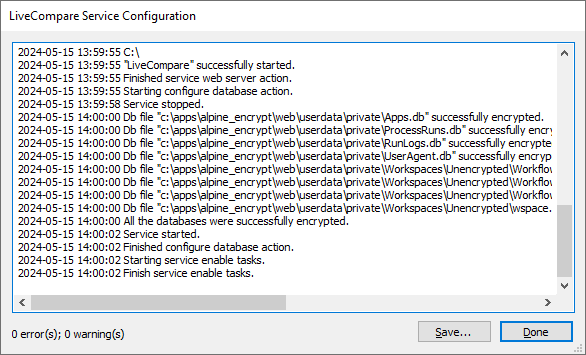

LiveCompare Service Configuration screen.

Click Done to close the screen, or Save... to save the configuration log to a text file. If necessary, the log file may be sent to Tricentis Technical support for analysis.

Export the database key

If you selected either ‘Encrypted’ or ‘Re-encrypted (use a new key)’ in the Database Encryption screen, carry out the following steps to export the database key used for the encryption as an XML file.

Log in to LiveCompare as a user with Administrator privileges and click to go to the LiveCompare studio.
In the Administration screen’s Database section, click ‘Export Database Key’.
In the screen that follows, click ‘download the file’ to download a file named database_key.xml to your machine. Keep the file in a safe place.
For security, click ‘done’ to delete the server-side copy of the database_key.xml file.

Database encryption with unregistered workspaces

The following table describes some special cases that arise when using database encryption with unregistered workspaces.

Current configuration	New configuration	Special cases
Unencrypted	Encrypted	An unregistered workspace exists that was copied directly from another encrypted server. In this case, the workspace cannot be encrypted. The Update LiveCompare Service Configuration Wizard logs the paths of the database files that could not be encrypted.
Encrypted	Re-encrypted	An unregistered workspace exists that was copied directly from another encrypted server, or a workspace was exported (so it is unencrypted) and then copied to the LiveCompare server without being registered. In these cases, the workspaces cannot be re-encrypted. The Update LiveCompare Service Configuration Wizard logs the paths of the database files that could not be re-encrypted.
Encrypted	Unencrypted	An unregistered workspace exists that was copied directly from another encrypted server, or a workspace was exported (so it is unencrypted) and then copied to the LiveCompare server without being registered. In these cases, the workspaces cannot be decrypted. The Update LiveCompare Service Configuration Wizard logs the paths of the database files that could not be decrypted.

Current configuration

New configuration

Special cases

Unencrypted

Encrypted

An unregistered workspace exists that was copied directly from another encrypted server.

In this case, the workspace cannot be encrypted. The Update LiveCompare Service Configuration Wizard logs the paths of the database files that could not be encrypted.

Encrypted

Re-encrypted

An unregistered workspace exists that was copied directly from another encrypted server, or a workspace was exported (so it is unencrypted) and then copied to the LiveCompare server without being registered.

In these cases, the workspaces cannot be re-encrypted. The Update LiveCompare Service Configuration Wizard logs the paths of the database files that could not be re-encrypted.

Encrypted

Unencrypted

In these cases, the workspaces cannot be decrypted. The Update LiveCompare Service Configuration Wizard logs the paths of the database files that could not be decrypted.
